(84.912.04) - DIPPER - 6.40 M - BRACKET - WITH OPTION AND SAFETY VALVE - CX210C LR

Запчасти Case CX210C LR (84.912.04) - DIPPER - 6.40 M - BRACKET - WITH OPTION AND SAFETY VALVE - CX210C LR (84) - BOOMS, DIPPERS & BUCKETS

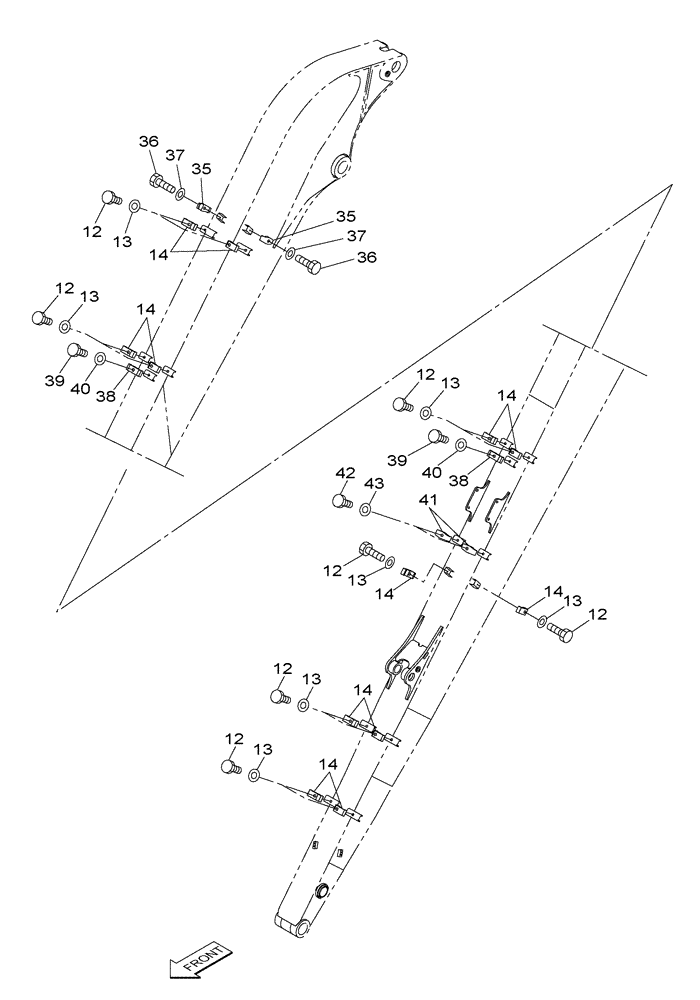

Схема запчастей Case CX210C LR - (84.912.04) - DIPPER - 6.40 M - BRACKET - WITH OPTION AND SAFETY VALVE - CX210C LR (84) - BOOMS, DIPPERS & BUCKETS
13
12
14
38
12
13
12
12
37
43
13
36
35
13
41
14
37
42
36
12
14
39
13
13
14
35
12
40
14
40
39
38
14
14
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

12шт.

14

150777A1

COLLAR

12шт.

35

151486A1

CLAMP BRACKET

2шт.

36

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

37

150811A1

WASHER

2шт.

38

159742A1

COLLAR

2шт.

39

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

40

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

41

151486A1

CLAMP BRACKET

2шт.

42

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

43

150811A1

WASHER

2шт.
