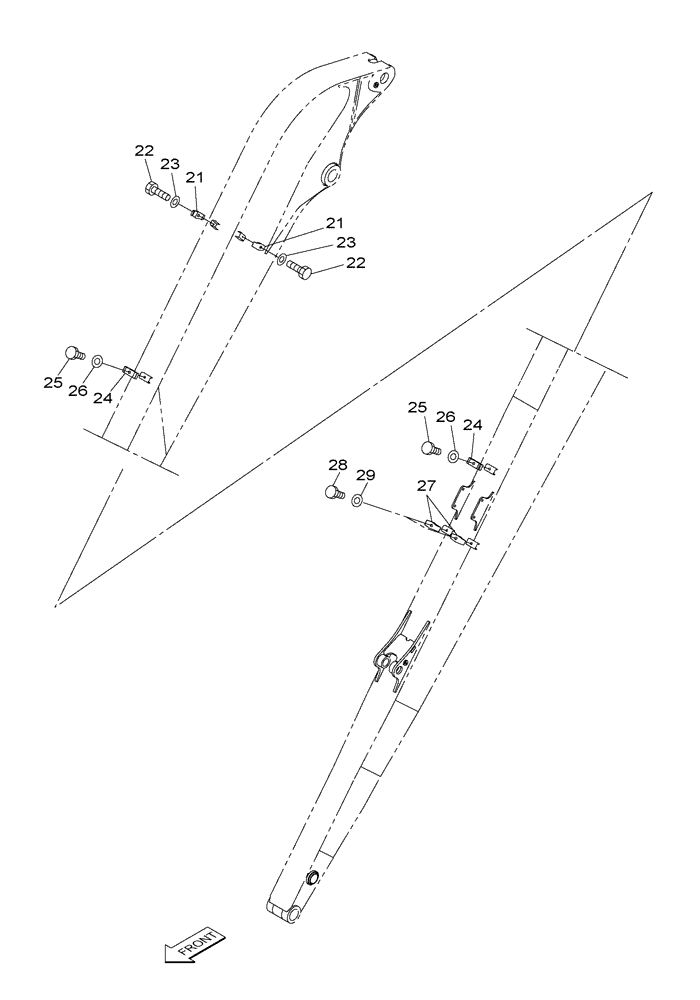

Запчасти Case CX210C LR (84.912.03) - DIPPER - 6.40 M - BRACKET - WITH SAFETY VALVE - CX210C LR (84) - BOOMS, DIPPERS & BUCKETS

21

151486A1

CLAMP BRACKET

2шт.

22

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

23

150811A1

WASHER

2шт.

24

159742A1

COLLAR

2шт.

25

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

27

151486A1

CLAMP BRACKET

2шт.

28

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

29

150811A1

WASHER

2шт.
