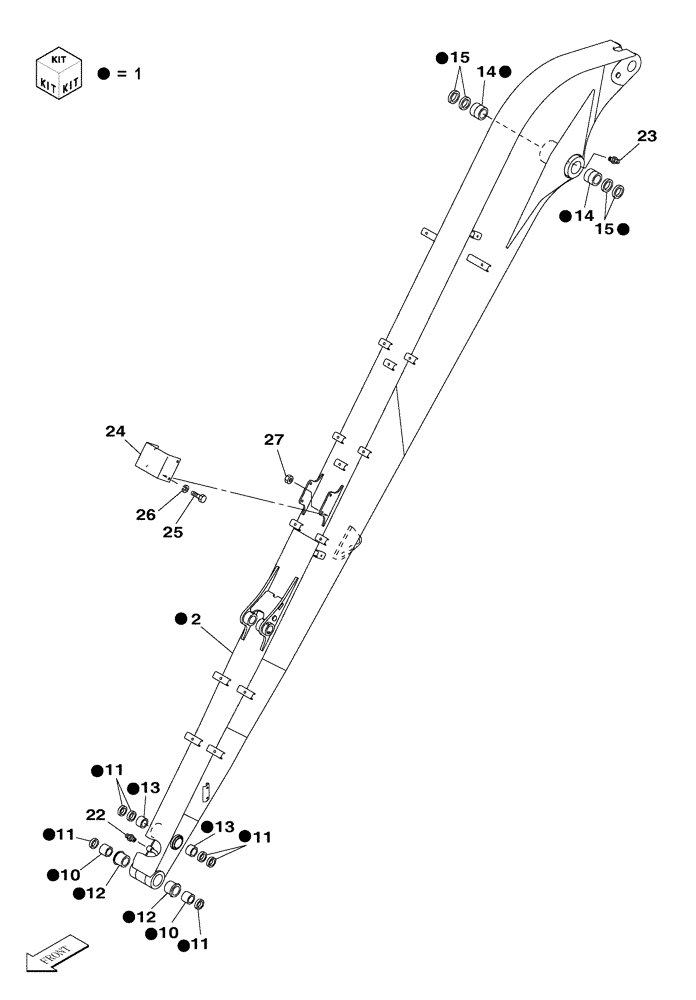

Запчасти Case CX210C LR (84.912.01) - DIPPER - 6.40 M - CX210C LR (84) - BOOMS, DIPPERS & BUCKETS

1

KRV25430

DIPPER

Super Long 6.40M, Incl. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

10

KNV15910

BUSHING

2шт.

11

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

6шт.

12

KNV1130

BUSHING

2шт.

13

KNV1138

BUSHING,65mm ID x 80mm OD x 50mm L

2шт.

14

KRV2397

SELF LUB RING

2шт.

15

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

4шт.

22

153630A1

LUBE NIPPLE

1шт.

23

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

24

164395A1

COVER

1шт.

25

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

27

829-1416

NUT,M16, Cl 10

4шт.
