/ / / / / / / / (55.530.01) - ELECTRICAL CIRCUIT

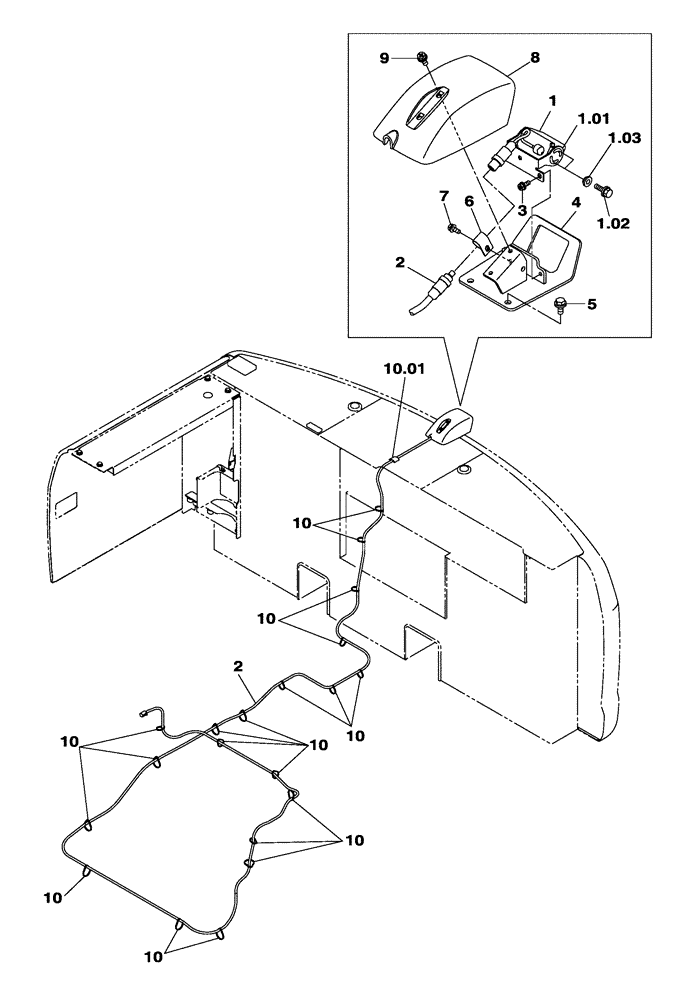

Запчасти Case CX210C LR (55.530.01) - ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS
4
8
10
10
2
1
1.01
10
6
10.01
7
9
10
10
5
10
10
1.03
10
2
1.02
3
1
KHR23830
VIDEO CAMERA
1шт.
1.01
KHR28180
BRACKET
1шт.
1.02
KHR28190
BOLT
4шт.
1.03
KHR28200
BUSHING
4шт.
2
KHR28650
WIRE HARNESS
1шт.
3
KHN2132
BOLT,Hex Flg Hd, M6 x 16
2шт.
4
KHR28630B1
BRACKET, SUPPORTING
1шт.
5
166350A1
BOLT
M8 x 20
2шт.
6
157806A1
COLLAR
1шт.
7
KHN2132
BOLT,Hex Flg Hd, M6 x 16
1шт.
8
KHR28640
COVER
1шт.
9
KHN2132
BOLT,Hex Flg Hd, M6 x 16
2шт.
10
150496A1
MOUNTING CLIP
250 mm
20шт.
10.01
KHR29480
CLAMP
1шт.
12
KHP18460
DECAL
Not Shown
1шт.
