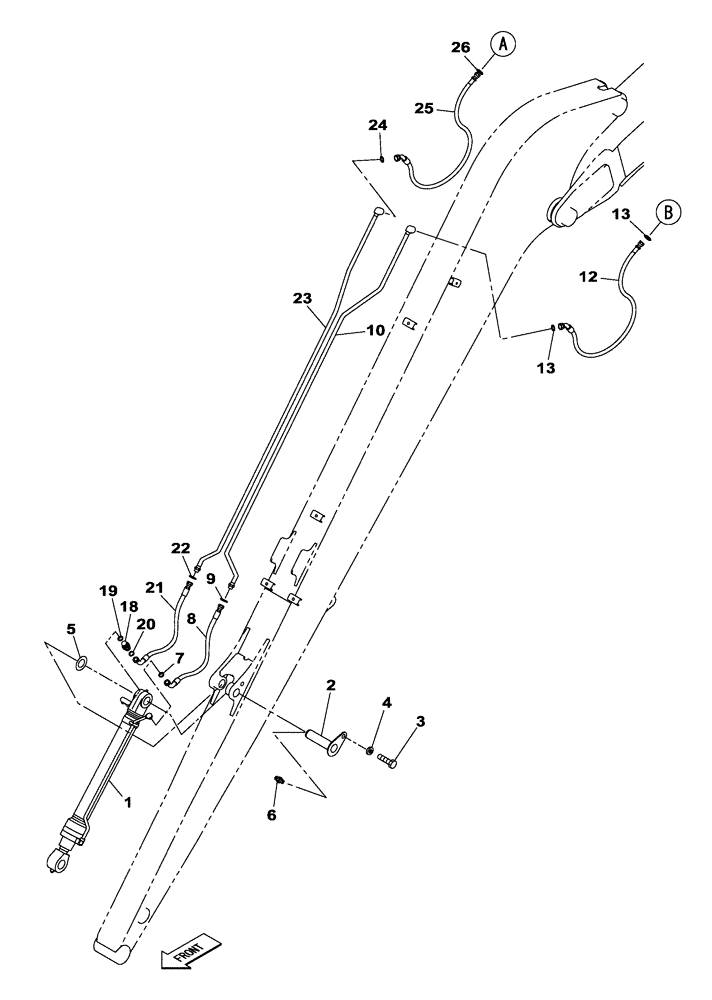

Запчасти Case CX210C LR (35.738.01) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER - 6.40 M - CX210C LR (35) - HYDRAULIC SYSTEMS

1

KNV12541

BUCKET CYLINDER

1шт.

1

KNV12541R

REMAN-HYD CYLINDER

Bucket

1шт.

1

KNV12541C

CORE-HYD CYLINDER

Return Number

1шт.

2

KBV16930

PIN

1шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

4

157141A1

WASHER

1шт.

5

160734A1

SHIM

1шт.

6

153630A1

LUBE NIPPLE

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KRV14231

HYDRAULIC HOSE

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KRV24280

HYD TUBE

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

12

KLV15030

HYDRAULIC HOSE

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

18

KHJ1348

ADAPTER

1шт.

19

154503A1

O-RING

1шт.

20

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

21

KRV14231

HYDRAULIC HOSE

1шт.

22

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

23

KRV24270

HYD TUBE

1шт.

24

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

25

KLV15030

HYDRAULIC HOSE

1шт.

26

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.
