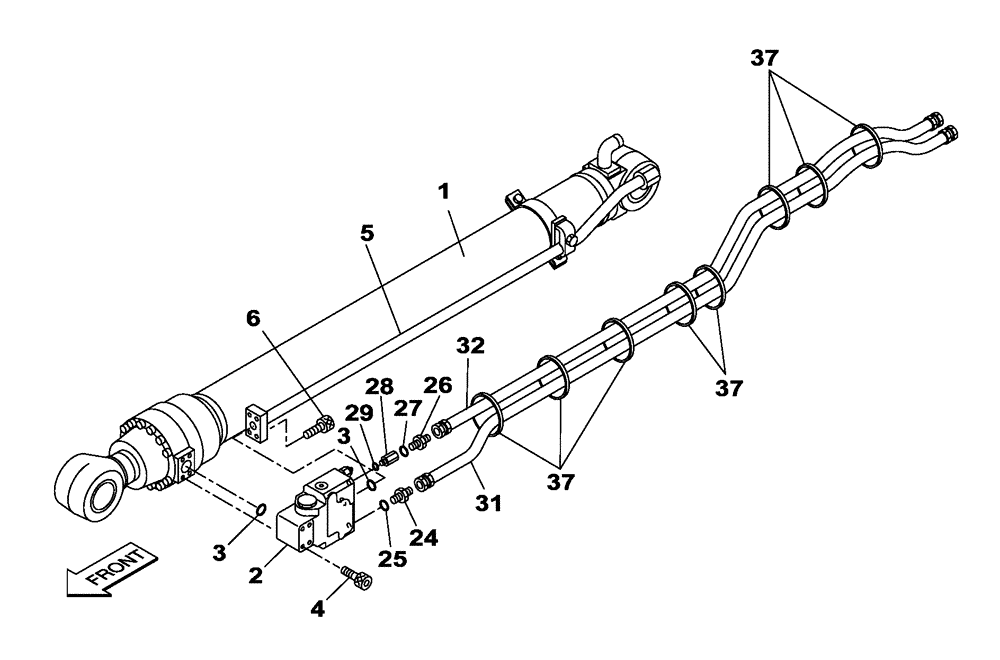

Запчасти Case CX210C LR (35.737.04) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - MONOBLOCK BOOM - 8.70 M - CX210C LR (35) - HYDRAULIC SYSTEMS

1

KRV24010

HYDRAULIC CYLINDER

1шт.

1

KRV24010R

REMAN-HYD CYLINDER

1шт.

1

KRV24010C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV11120

VALVE SECTION

Replaced by KSV17260

1шт.

2

KSV17260

SAFETY VALVE

1шт.

3

155211A1

O-RING

2шт.

4

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

5

KRV24560

HYD TUBE

1шт.

6

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

24

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

25

154475A1

O-RING

1шт.

26

152747A1

ADAPTER

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162525A1

STUD

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

KHJ17480

HYDRAULIC HOSE

1шт.

32

KHJ17480

HYDRAULIC HOSE

1шт.

37

150067A1

MOUNTING CLIP

12шт.
