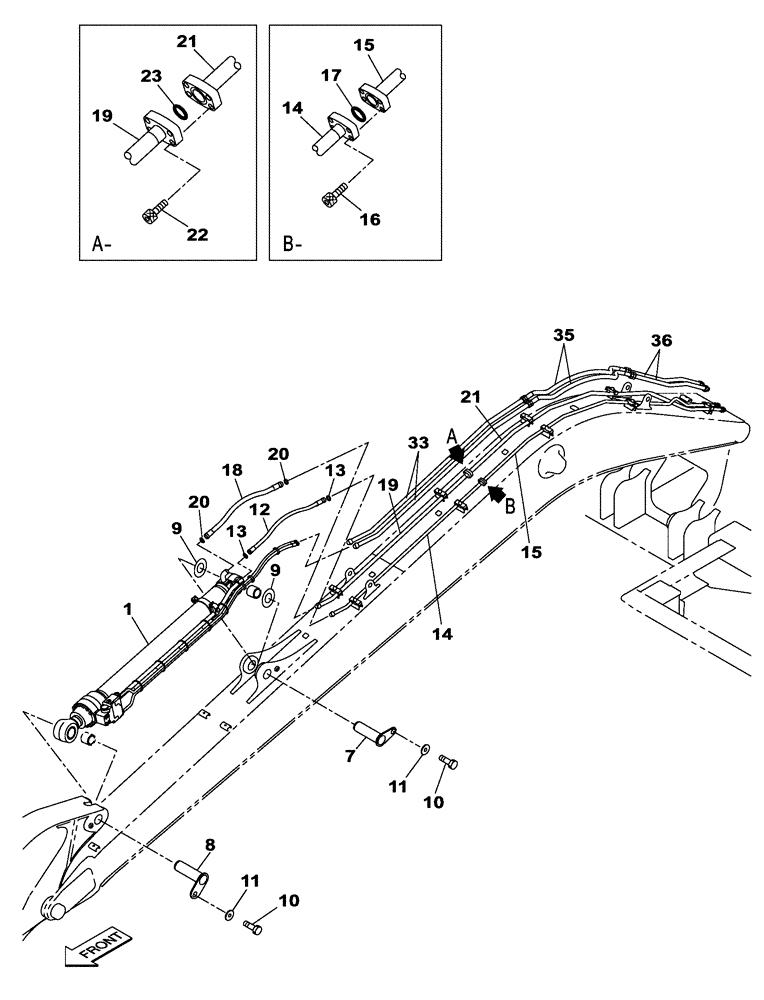

Запчасти Case CX210C LR (35.737.03) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - MONOBLOCK BOOM - 8.70 M - CX210C LR (35) - HYDRAULIC SYSTEMS

1

KRV24010

HYDRAULIC CYLINDER

1шт.

1

KRV24010R

REMAN-HYD CYLINDER

1шт.

1

KRV24010C

CORE-HYD CYLINDER

Return Number

1шт.

7

KRV24490

PIN

1шт.

8

KRV25421

PIN

1шт.

9

159451A1

SHIM

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

KRV12781

HYDRAULIC HOSE

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

14

KRV2895

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

15

KRV37420

HYD TUBE

1шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

17

154528A1

O-RING

1шт.

18

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

19

KRV2894

HYD TUBE,26 mm ID x 34 mm OD

1шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

21

KRV24230

HYD TUBE

1шт.

22

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

23

154548A1

O-RING

1шт.

33

KRV24300

HYD TUBE

2шт.

35

KHJ1235

HYDRAULIC HOSE

2шт.

36

KRV24290

HYD TUBE

2шт.
