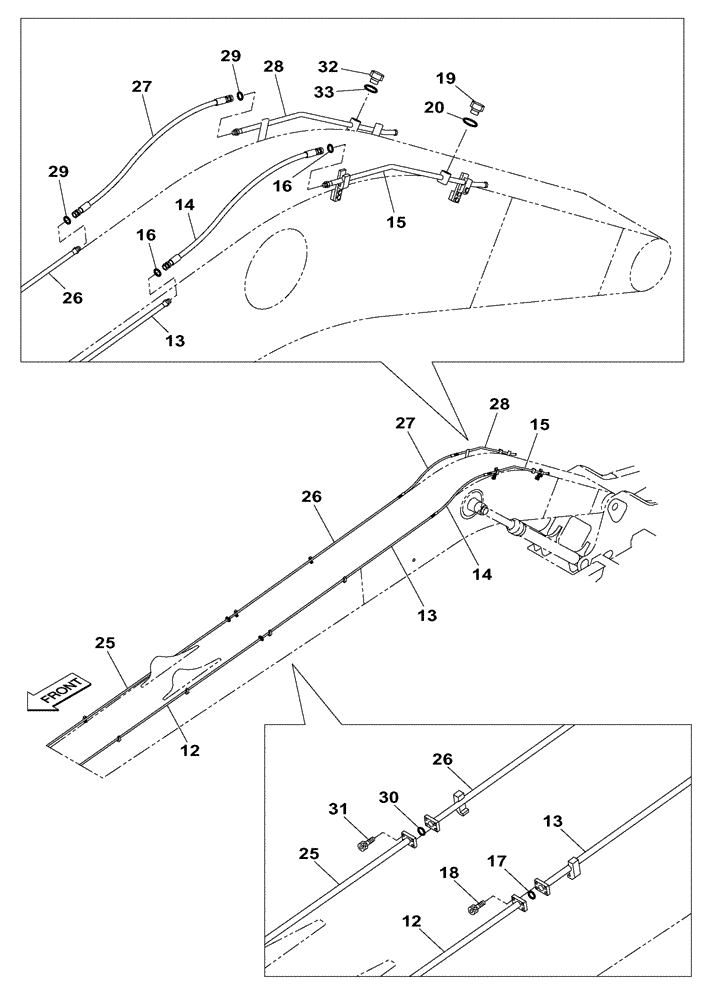

Запчасти Case CX210C LR (35.736.05) - HYDRAULIC CIRCUIT - MONOBLOCK BOOM - 8.70 M - OPTIONAL - CX210C LR (35) - HYDRAULIC SYSTEMS

12

KRV24440

HYD TUBE

LH

1шт.

13

KRV17540

HYD TUBE

LH

1шт.

14

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

15

KRV24320

HYD TUBE

1шт.

16

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

17

154548A1

O-RING

2шт.

18

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

19

152924A1

PLUG

Incl 20

1шт.

20

154503A1

O-RING

1шт.

26

KRV17540

HYD TUBE

RH

1шт.

27

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

28

KRV24310

HYD TUBE

RH

1шт.

29

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

30

154548A1

O-RING

2шт.

31

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

32

152924A1

PLUG

Incl 33

1шт.

33

154503A1

O-RING

1шт.
