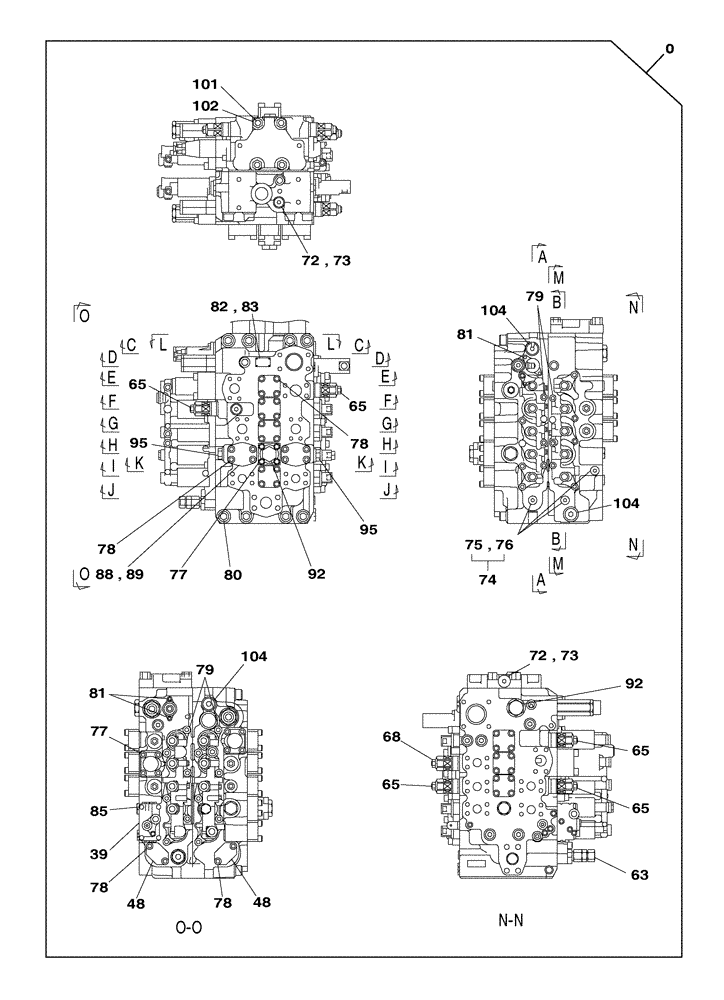

Запчасти Case CX210C LR (35.359.02[01]) - VALVE ASSY - CONTROL (35) - HYDRAULIC SYSTEMS

0

KRJ30100

CONTROL VALVE

Incl 1 - 106

1шт.

39

LR019370

HOUSING

1шт.

48

LH00250

CAP

2шт.

63

LJ015010

VALVE PRESSURE RELIE

1шт.

65

LJ014730

VALVE PRESSURE RELIE

5шт.

68

LJ015020

VALVE PRESSURE RELIE

1шт.

72

163369A1

PLUG

Incl 73

9шт.

73

154475A1

O-RING

1шт.

74

163972A1

PLUG

Incl 75 - 76

3шт.

75

LK00328

PLUG

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

108R010Z055B

BOLT

12шт.

78

108R010Z040B

BOLT

46шт.

79

160287A1

BOLT,Hex Skt

20шт.

80

108R016Z130B

BOLT

8шт.

81

LUC0118

BOLT,Hex Skt Hd

4шт.

82

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

83

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

85

LA011120

BOLT,Hex Skt Hd

4шт.

88

LR00579

PLUG

2шт.

89

168198A1

O-RING

2шт.

92

LK00302

PLUG

2шт.

95

165839A1

PLUG

2шт.

101

LB011890

TIE-ROD

4шт.

102

LUC0094

SPECIAL NUT

4шт.

104

163370A1

PLUG

2шт.
