(CX210C LR) - CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-11/13)
/
(00) - GENERAL & PICTORIAL INDEX
/

(00.000.00) - PICTORIAL INDEX - MAIN SECTIONS

Запчасти Case CX210C LR (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX

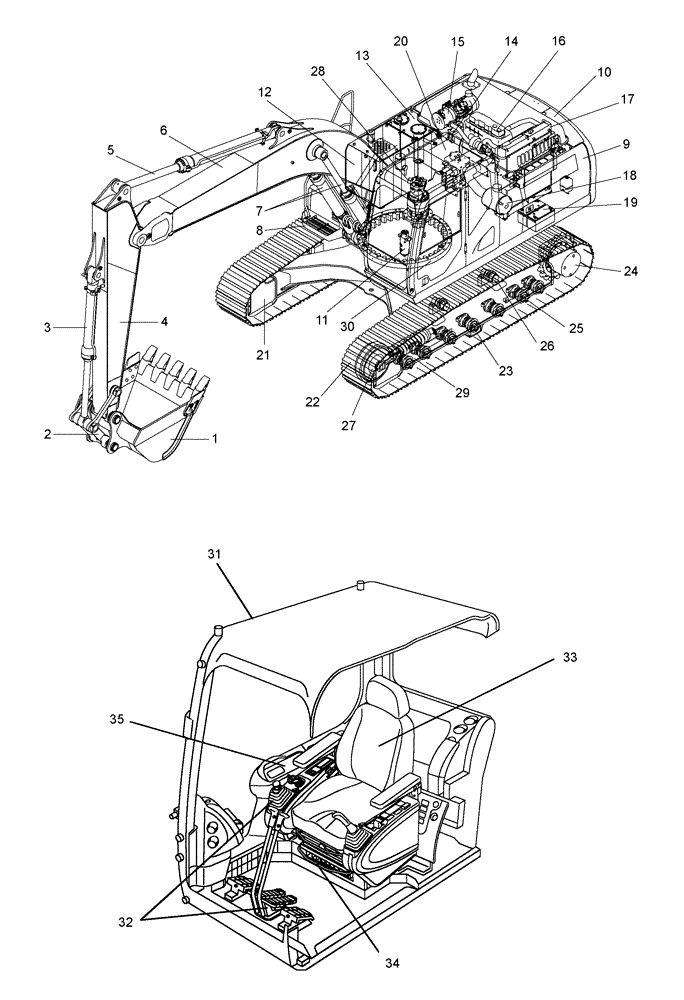

Схема запчастей Case CX210C LR - (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX
32
21
13
12
17
26
31
35
19
5
34
24
9
30
16
25
15
2
7
29
23
22
33
6
20
18
10
4
14
3
8
1
27
11
28

№

Артикул

Название

Примечание

Количество

1

BUCKET - See Figure(s) 84.100.02 - 84.100.07

1шт.

2

BUCKET CONTROL - See Figure(s) 84.100.01

1шт.

3

BUCKET CYLINDER - See Figure(s) 35.738.01 - .03

1шт.

4

DIPPER - See Figure(s) 84.912.01 - .10

1шт.

5

DIPPER CYLINDER - See Figures 35.737.01 -.08

1шт.

6

MONOBLOCK BOOM - See Figure(s) 84.910.01 - .02

1шт.

7

BOOM CYLINDER - See Figure(s) 35.736.05 - .08

1шт.

8

UPPERSTRUCTURE CHASSIS - See Figure(s) 39.101.01 - .02

1шт.

9

COWLING - See Figure(s) 90.100.01

1шт.

10

COUNTERWEIGHT - See Figure(s) 39.140.01

1шт.

11

SWING JOINT - See Figure(s) 35.354.01

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 10.216.01 -.02, 10.218.01

1шт.

13

HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Figure(s) 35.300.01 -.02

1шт.

14

HYDRAULIC PUMP - See Figure(s) 35.106.01 - .05

1шт.

15

EXHAUST ENGINE - See Figure(s) 10.254.01

1шт.

16

ENGINE - See Figure(s) 10.001.02 - .04, 10.101.01, 10.102.01, 10.103.01

1шт.

17

RADIATOR - See Figure(s) 10.400.01

1шт.

18

AIR FILTRATION - See Figure(s) 10.202.01 - .02

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 55.302.01, 55.201.01

1шт.

20

CONTROL VALVE - See Figure(s) 35.359.02 - .15

1шт.

21

UNDERCARRIAGE, HYDRAULIC CIRCUIT - See Figure(s) 35.310.02 - .09

1шт.

22

TRACK FOOT STEP - See Figure(s) 48.100.01 - .05

1шт.

23

GUIDE, CHAIN - See Figure(s) 48.130.03 - .04

1шт.

24

TRAVEL MOTOR AND REDUCTIONGEAR - See Figure(s) 35.353.01

1шт.

25

ROLLER LOWER - See Figure(s) 48.138.02

1шт.

26

ROLLER UPPER - See Figure(s) 48.138.01

1шт.

27

GUIDE PULLEY - See Figure(s) 48.130.02

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 35.352.02 - .03

1шт.

29

TENSION DAMPER - See Figure(s) 48.134.01 - .03

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 39.103.01, 71.460.01

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 90.150.01 - .07

1шт.

32

OPERATORS COMPARTMENT, LEVER, CONTROL - See Figure(s) 90.110.03

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 90.120.01, 90.124.01

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 50.200.01 - .02

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 90.150.01

1шт.

Выбрано товаров: 35
