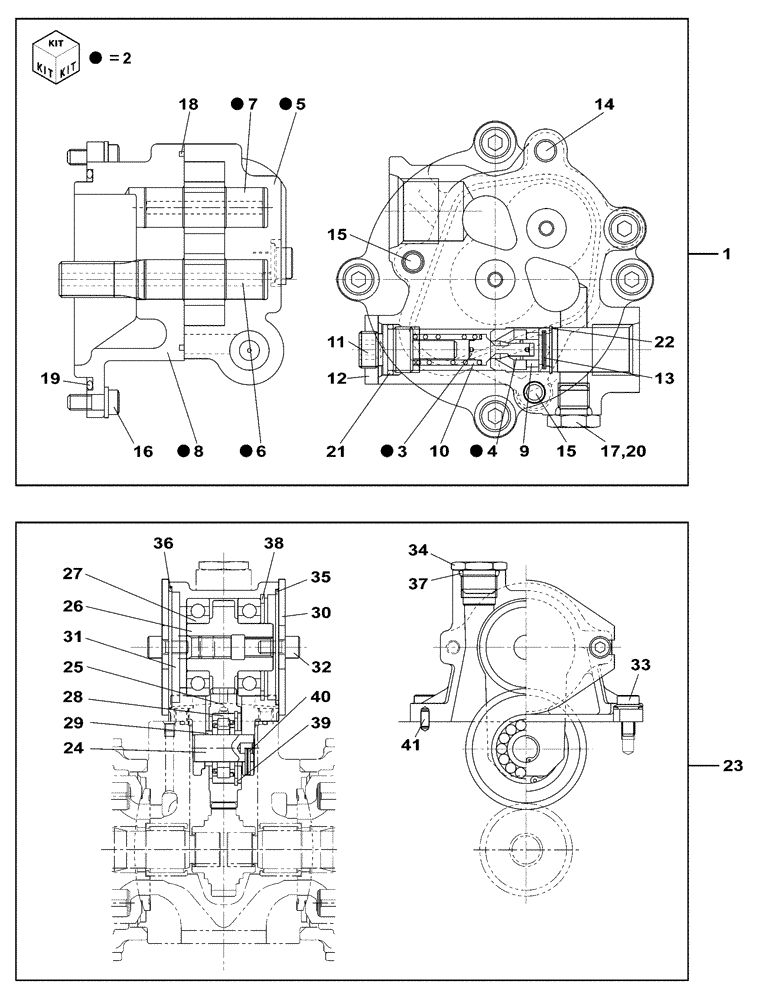

Запчасти Case CX210C LR (35.357.03) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL - WITH AUXILIARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

LJ014510

HYDRAULIC PUMP

Incl 2, 9 - 22

1шт.

1

LJ014510R

REMAN-HYD PUMP

CX210C LR CRAWLER EXCAVATOR - TIER 4 (NA), PUMP, PILOT CONTROL - WITH AUXILIARY HYDRAULICS (4/12-)

1шт.

1

LJ014510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

LC002870

GEAR

Incl 9 - 22

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

5

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

6

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

7

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

9

LE01175

RING

1шт.

10

LG00536

SPRING

1шт.

11

LF00043

ADJUSTER

1шт.

12

163662A1

LOCK NUT

1шт.

13

163663A1

FILTER

1шт.

14

163664A1

FLANGE BOLT,Hex Skt, M8 x 50mm

2шт.

15

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

2шт.

16

163666A1

FLANGE BOLT

4шт.

17

155496A1

PLUG

1шт.

18

163667A1

SEALING RING

1шт.

19

LE013510

O-RING

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

154483A1

O-RING

1шт.

22

163668A1

RING, LOCKING

RING, LOCK

1шт.

23

LC002860

PUMP

Incl 32 - 37, 40

1шт.

24

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

25

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

26

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

27

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

28

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

29

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

30

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

31

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

32

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.

33

LA00691

BOLT,Hex Skt Hd

4шт.

34

155471A1

PLUG

1шт.

35

154689A1

O-RING

1шт.

36

154697A1

O-RING

1шт.

37

154503A1

O-RING

1шт.

38

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

39

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

40

LA010900

DOWEL

1шт.

41

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.
