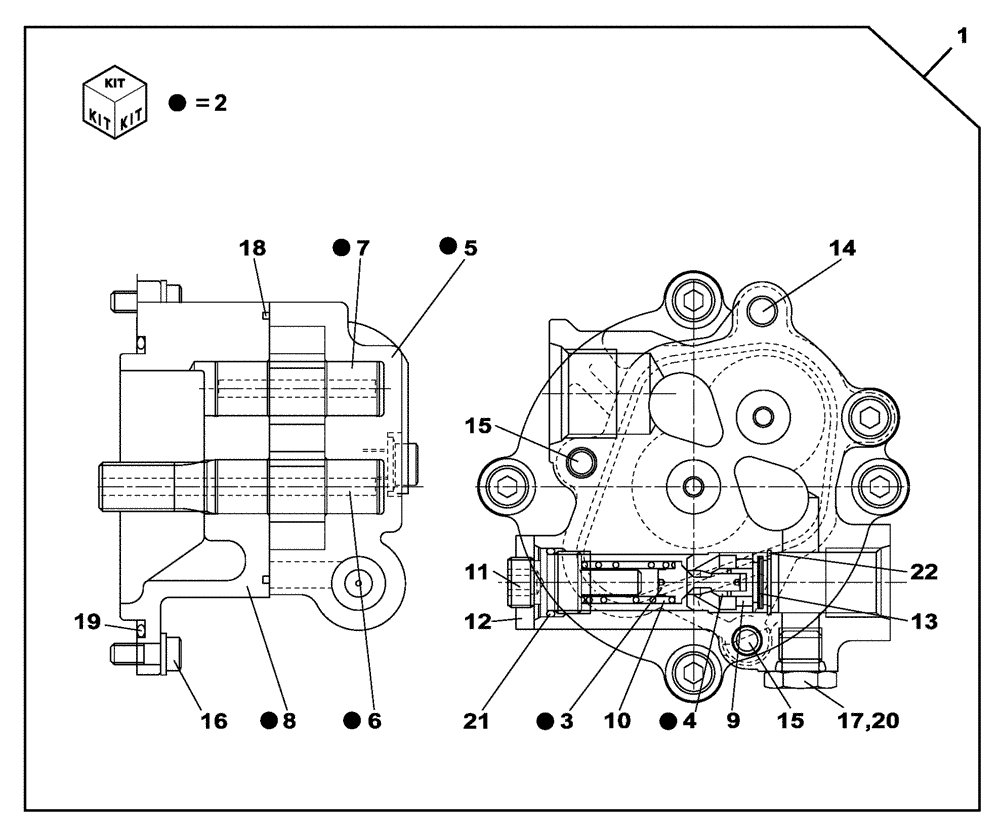

Запчасти Case CX210C LR (35.357.02) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL - STANDARD (35) - HYDRAULIC SYSTEMS

1

LJ014510

HYDRAULIC PUMP

Incl 2, 9 - 22

1шт.

1

LJ014510R

REMAN-HYD PUMP

CX210C LR CRAWLER EXCAVATOR - TIER 4 (NA), PUMP, PILOT CONTROL - STANDARD (4/12-)

1шт.

1

LJ014510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

LC002870

GEAR

Incl 9 - 22

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

5

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

6

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

7

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

9

LE01175

RING

1шт.

10

LG00536

SPRING

1шт.

11

LF00043

ADJUSTER

1шт.

12

163662A1

LOCK NUT

1шт.

13

163663A1

FILTER

1шт.

14

163664A1

FLANGE BOLT,Hex Skt, M8 x 50mm

2шт.

15

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

2шт.

16

163666A1

FLANGE BOLT

4шт.

17

155496A1

PLUG

1шт.

18

163667A1

SEALING RING

1шт.

19

LE013510

O-RING

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

154483A1

O-RING

1шт.

22

163668A1

RING, LOCKING

RING, LOCK

1шт.
