(35.350.10) - VALVE, SOLENOID - OPTIONAL - SMALL FLOW

Запчасти Case CX210C LR (35.350.10) - VALVE, SOLENOID - OPTIONAL - SMALL FLOW (35) - HYDRAULIC SYSTEMS

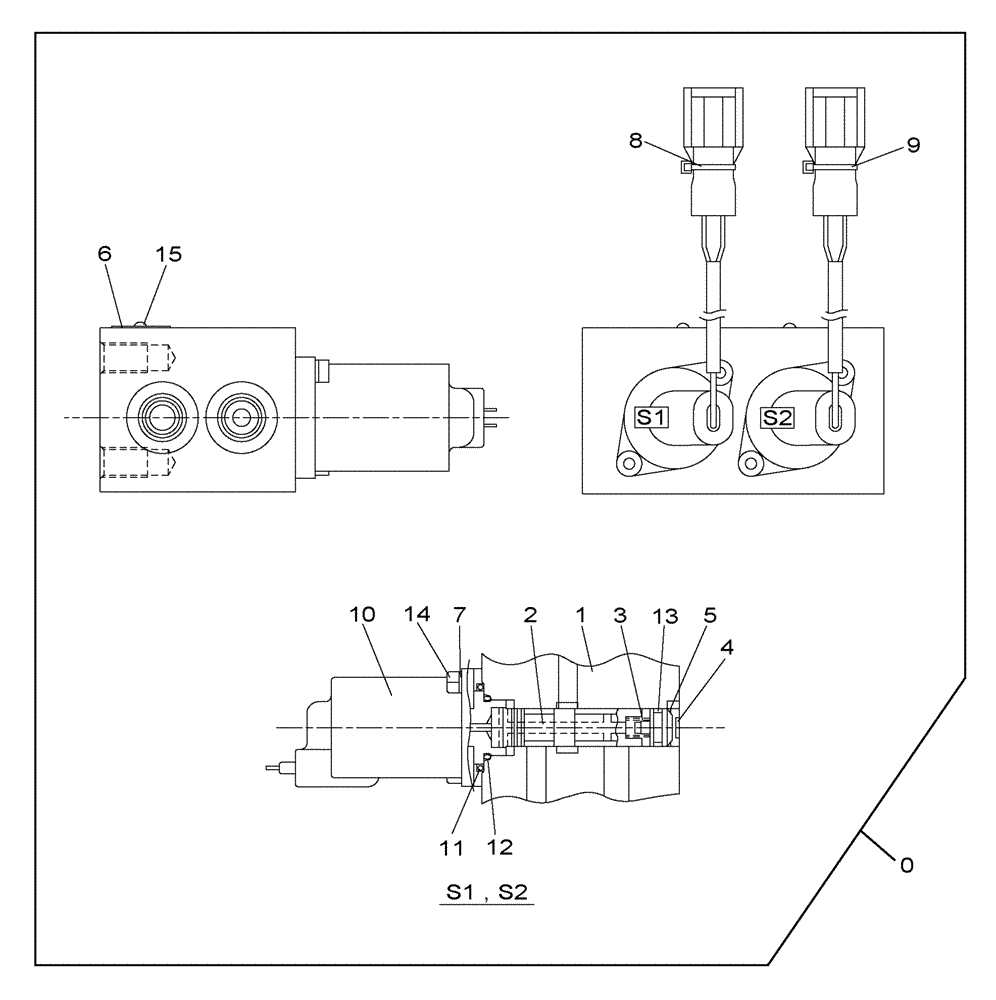

Схема запчастей Case CX210C LR - (35.350.10) - VALVE, SOLENOID - OPTIONAL - SMALL FLOW (35) - HYDRAULIC SYSTEMS
6
1
9
10
8
7
4
0
5
2
12
15
11
13
14
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

KHJ14000

VALVE SECTION

Incl 3 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

2

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

3

LG006010

COMPRESSION SPRING

2шт.

4

LR015080

ADAPTER

2шт.

5

LA010960

SNAP RING

2шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

LA010970

SPRING WASHER

4шт.

8

LD001470

COLLAR

1шт.

9

LD001450

COLLAR

1шт.

10

LL001140

SOLENOID

Incl 11 - 12

2шт.

11

155188A1

O-RING

2шт.

12

154487A1

O-RING

2шт.

13

154463A1

O-RING

2шт.

14

LA010980

BOLT,Hex Skt Hd

4шт.

15

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.
