(35.350.08) - VALVE SOLENOID

Запчасти Case CX210C LR (35.350.08) - VALVE SOLENOID (35) - HYDRAULIC SYSTEMS

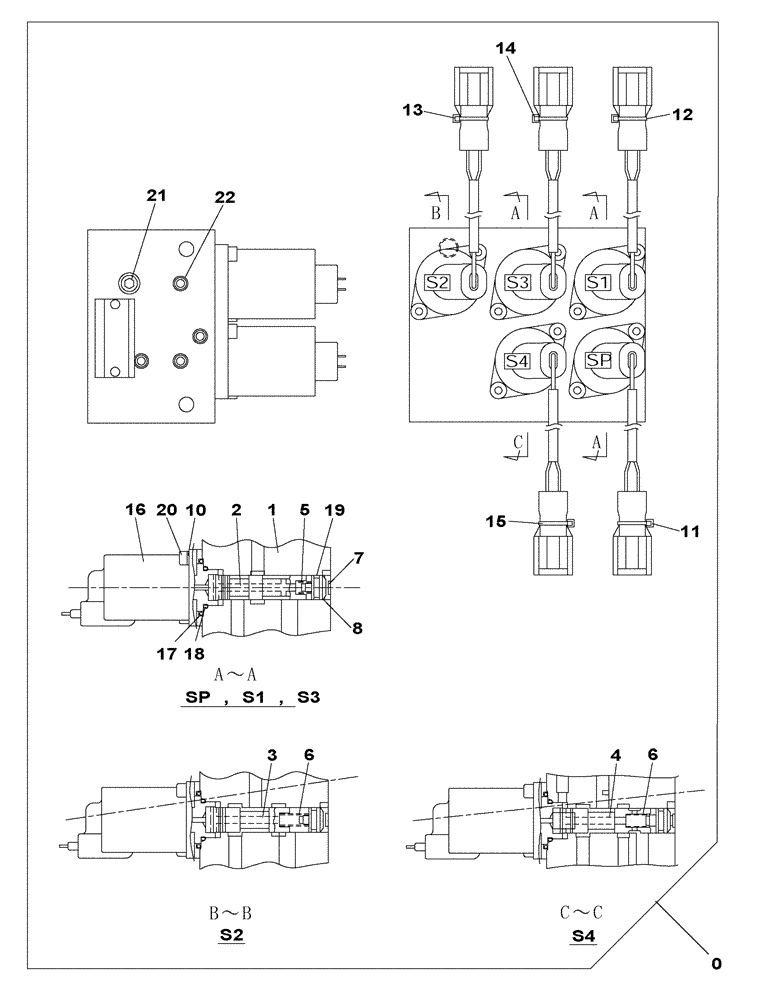

Схема запчастей Case CX210C LR - (35.350.08) - VALVE SOLENOID (35) - HYDRAULIC SYSTEMS
2
15
0
18
6
7
5
22
12
11
4
14
3
20
16
6
17
10
21
1
8
13
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

KHJ14520

SOLENOID VALVE

Incl 5 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

2

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

3шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

5

LG006010

COMPRESSION SPRING

3шт.

6

LG006020

COMPRESSION SPRING

2шт.

7

LR015080

ADAPTER

5шт.

8

LA010960

SNAP RING

5шт.

10

LA010970

SPRING WASHER

10шт.

11

LD001470

COLLAR

1шт.

12

LD001450

COLLAR

1шт.

13

LD001440

COLLAR

1шт.

14

LD001490

COLLAR

1шт.

15

LD001460

MOUNTING CLIP

1шт.

16

LL001140

SOLENOID

Incl 17 - 18

5шт.

17

155188A1

O-RING

1шт.

18

154463A1

O-RING

1шт.

19

154463A1

O-RING

5шт.

20

LA010980

BOLT,Hex Skt Hd

10шт.

21

LK005630

PLUG

6шт.

22

LK005640

PLUG

11шт.
