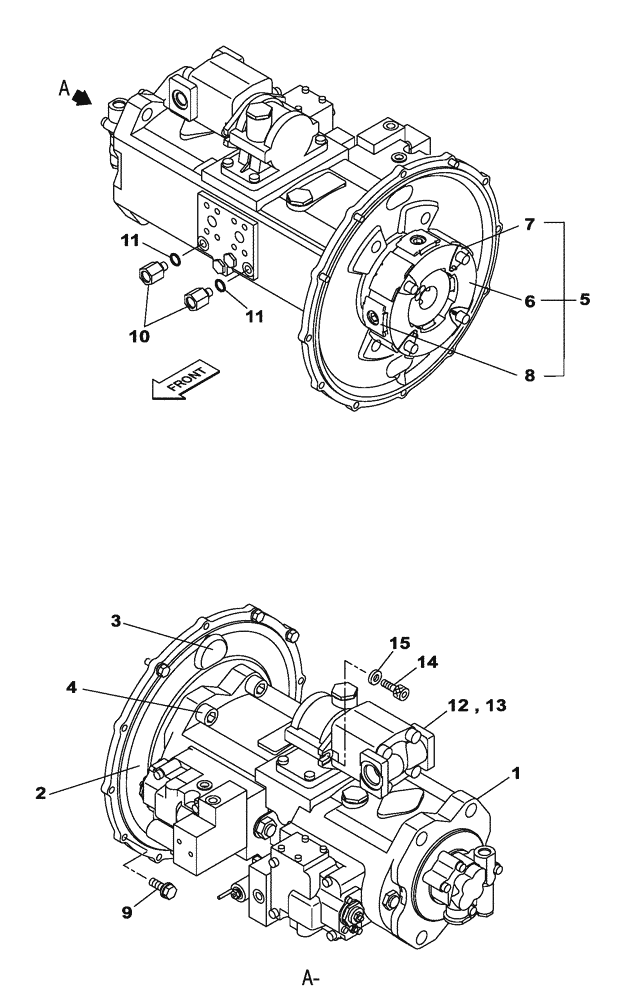

Запчасти Case CX210C LC (35.106.05) - HYDRAULIC PUMP - COUPLING - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

KRJ15970

HYDRAULIC PUMP

1шт.

1

KRJ15970R

REMAN-HYD PUMP

CX210C LC CRAWLER EXCAVATOR - TIER 4 (NA), HYDRAULIC PUMP - COUPLING - OPTIONAL (2/12-)

1шт.

1

KRJ15970C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166370A1

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

5

KRJ29521

HYDRAULIC PUMP

Inc. 6 - 8

1шт.

6

KRJ10650

COUPLING

1шт.

7

KRJ10660

INSERT

4шт.

8

KRJ10670

INSERT

1шт.

9

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

8шт.

10

KHJ18180

STUD

Inc. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KRJ10300

HYDRAULIC PUMP

1шт.

12

KRJ10300R

REMAN-HYD PUMP

CX210C LC CRAWLER EXCAVATOR - TIER 4 (NA) (2/12-)

1шт.

12

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

154697A1

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

15

150409A1

WASHER

2шт.
