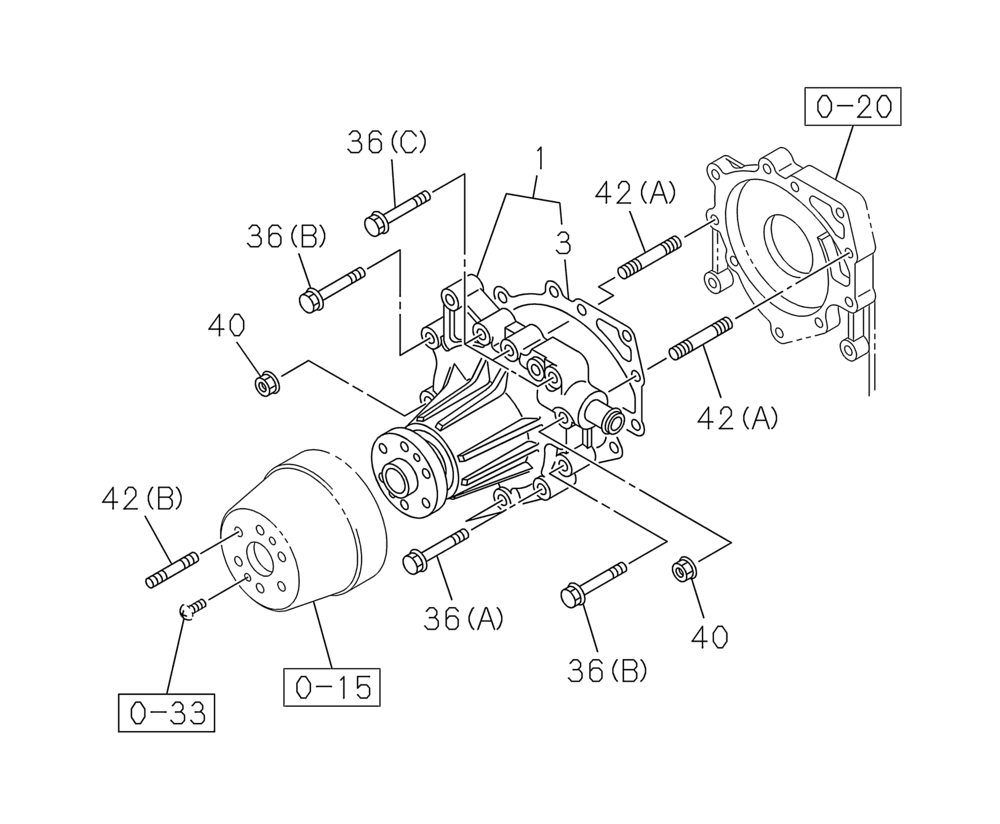

Запчасти Case CX210C LC (10.400.05) - WATER PUMP SYSTEM (10) - ENGINE

0-15

Pistons And Crankshaft, See Figure(s) 10.103.01 01

1шт.

0-20

Engine Flywheel Housing, See Figure(s) 10.103.01 02

1шт.

0-33

Belt And Ventilation - Fan Guard, See Figure(s) 10.414.01

1шт.

1

84387963

WATER PUMP

Inc. 3

1шт.

1

84387963R

REMAN-WATER PUMP

CX210C LC CRAWLER EXCAVATOR TIER 4 (NA) (2/12-)

1шт.

1

84387963C

CORE-WATER PUMP

Return Number

1шт.

3

84389448

GASKET

1шт.

36a

87596455

BOLT

3шт.

36b

87596456

BOLT

3шт.

36c

87596512

BOLT

2шт.

40

87595271

NUT

2шт.

42a

87595444

STUD

2шт.

42b

84545015

STUD

6шт.
