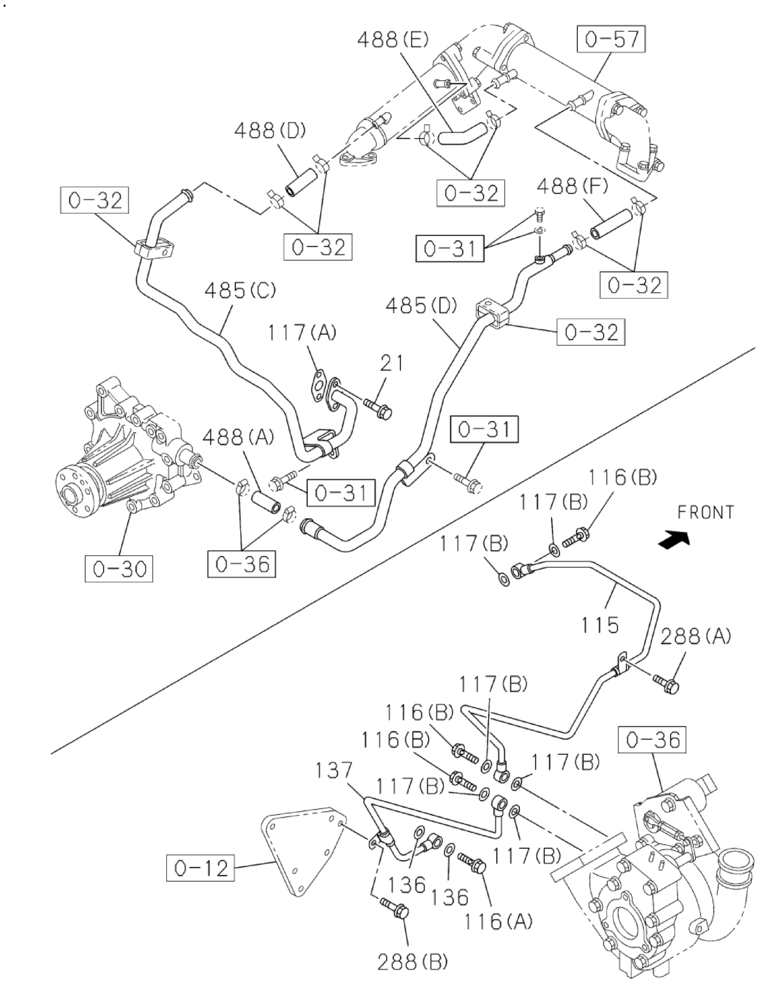

Запчасти Case CX210C LC (10.250.01[02]) - TURBOCHARGER (10) - ENGINE

0-12

Cylinder Block, See Figure(s) 10.001.03 02

1шт.

0-30

Water Pump System, See Figure(s) 10.400.05

1шт.

0-31

Engine Water Circuit - Thermostat, See Figure(s) 10.400.04

1шт.

0-32

Engine Water Circuit , See Figure(s) 10.400.03

1шт.

0-36

Turbocharger, See Figure(s) 10.250.01 02

1шт.

0-57

Exhaust Gas Recirculation System, See Figure(s) 10.501.01

1шт.

21

87595868

BOLT

2шт.

115

84545025

PIPE

1шт.

116a

87596581

BOLT

1шт.

116b

87596570

BOLT

3шт.

117a

87597616

GASKET

1шт.

117b

288854A1

GASKET

6шт.

136

426423A1

GASKET

2шт.

137

84389460

PIPE

1шт.

288a

87595866

BOLT

1шт.

288b

87595323

BOLT

1шт.

485c

84545026

TUBE

1шт.

485d

84545027

TUBE

1шт.

488a

84387645

LARGE HOSE

HOSE,LARGE

1шт.

488d

87378567

HOSE,6579.00 mm

140mm

1шт.

488e

84545034

FLEXIBLE HOSE

1шт.

488f

87378567

HOSE,6579.00 mm

60mm

1шт.
