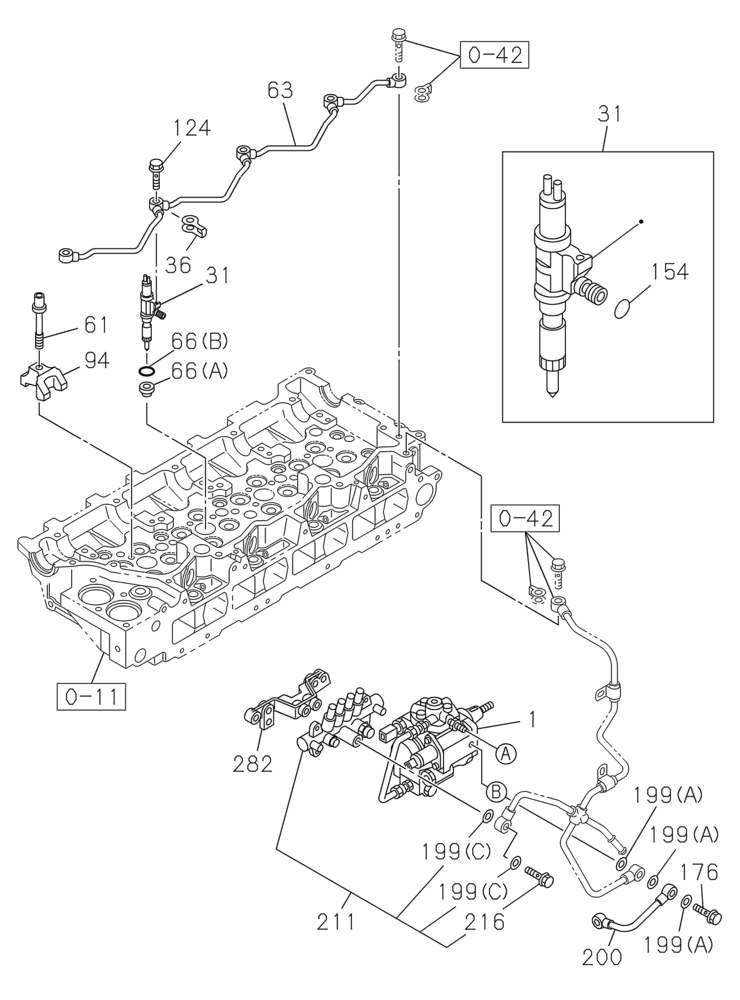

Запчасти Case CX210C LC (10.218.04[01]) - FUEL SYSTEM - FUEL INJECTION PUMP (10) - ENGINE

0-11

Cylinder Head, See Figure(s) 10.101.01 01

1шт.

0-42

Fuel System, See Figure(s) 10.218.05

1шт.

1

87560106

FUEL INJECTION PUMP

1шт.

87560106R

REMAN-INJECTION PUMP

CX210C LC Tier 4 (2/12-)

1шт.

87560106C

CORE-INJECTION PUMP

Return Number

1шт.

31

84545030

NOZZLE

Inc. 154

4шт.

31

84545030R

REMAN-FUEL INJECTOR

CX210C LC CRAWLER EXCAVATOR - TIER 4 (NA) (2/12-)

4шт.

31

84545030C

CORE-FUEL INJECTOR

Return Number

4шт.

36

84389334

GASKET

4шт.

61

87378846

BOLT

4шт.

63

87596670

RETURN PIPE

1шт.

66a

72109764

SEAL

4шт.

66b

84362100

GASKET

4шт.

94

87596877

NOZZLE HOLDER

4шт.

124

426418A1

BOLT

4шт.

154

84545008

GASKET

4шт.

176

87379798

BOLT

1шт.

199a

289092A1

GASKET

3шт.

199c

87379800

GASKET

2шт.

200

87596894

TUBE

1шт.

211

87598481

MANIFOLD

Inc. 199C, 216

1шт.

216

84292923

EYEBOLT

1шт.

282

84389478

BRACKET, SUPPORTING

1шт.
