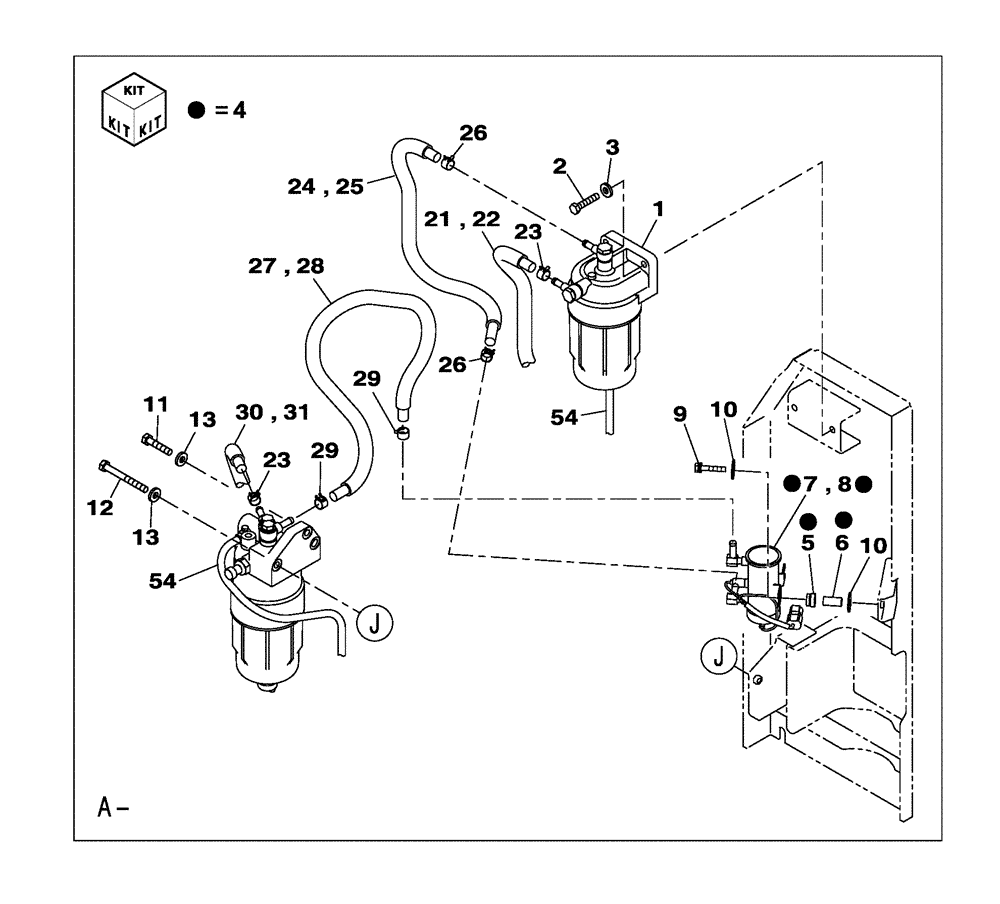

Запчасти Case CX210C LC (10.218.01[02]) - FUEL SYSTEM (10) - ENGINE

1

KHH12020

FILTER ASSY

See Figure(s) 10.206.02

1шт.

2

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

KHH11880

FEED PUMP

Inc. 5 - 8

1шт.

5

KHH10480

COLLAR

2шт.

6

KHH11890

FILTER SCREEN

1шт.

7

KHH11900

GASKET

1шт.

8

KHH10470

GROMMET

2шт.

9

162057A1

BOLT,Spcl, M6 x 35mm

2шт.

10

150529A1

WASHER

4шт.

11

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

12

102R008Y075R

BOLT

1шт.

13

153081A1

WASHER

3шт.

21

KHH12510

FUEL HOSE

1шт.

22

158062A1

PLASTIC-RUBBER TUBE

1шт.

23

KHH0405

MOUNTING CLIP

2шт.

24

KHH10610

FUEL HOSE,700.00 mm

1шт.

25

150488A1

PLASTIC-RUBBER TUBE

1шт.

26

KHH0405

MOUNTING CLIP

2шт.

27

KHH11780

FUEL HOSE

1шт.

28

158061A1

PLASTIC-RUBBER TUBE

1шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH0478

HOSE

1шт.

31

KHR13370

PLASTIC-RUBBER TUBE

1шт.

54

KHH12170

PLASTIC-RUBBER TUBE

2шт.
