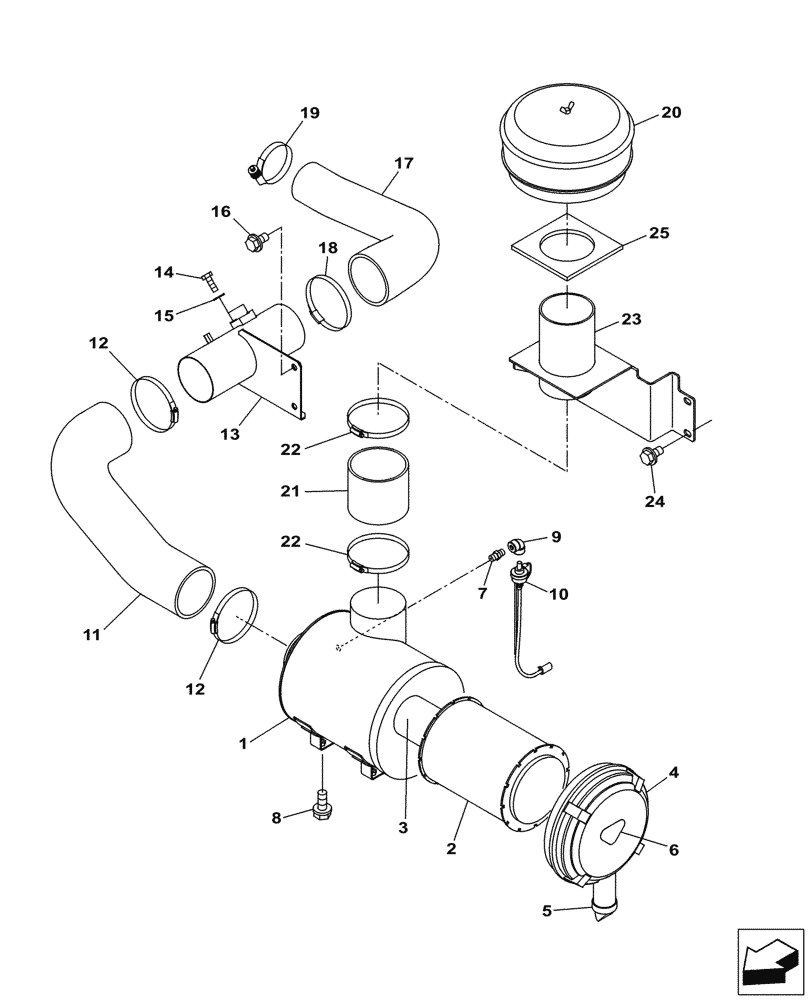

Запчасти Case CX210C LC (10.202.01) - AIR FILTRATION (ANZ) (10) - ENGINE

1

KRH13530

AIR CLEANER

1шт.

2

KBH0921

AIR FILTER

1шт.

3

KBH0922

AIR FILTER

1шт.

4

KBH0923

COVER ASSY

1шт.

5

KBH0924

VALVE

1шт.

6

KTH0581

DECAL

1шт.

7

KSH0935

FITTING

1шт.

8

166052A1

BOLT

4шт.

9

KHH13870

ELBOW UNION

1шт.

10

KHH10330

SENSOR

1шт.

11

KRH13600

LARGE HOSE

1шт.

12

150545A1

COLLAR

, Serial Range: -C0139

2шт.

12

KHJ33120

HOSE CLAMP

, Start Serial: D0139

2шт.

13

KRH13610

BRACKET, SUPPORTING

1шт.

14

KHH14100

BOLT

2шт.

15

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

17

KRH13620

LARGE HOSE

1шт.

18

150545A1

COLLAR

, Serial Range: -C0139

1шт.

18

KHJ33120

HOSE CLAMP

, Start Serial: D0139

1шт.

19

KHH13210

CLAMP

1шт.

20

KHH13120

FILTER ASSY

1шт.

21

KRH12040

LARGE HOSE

1шт.

22

150855A1

HOSE CLAMP,127mm - 146mm

, Serial Range: -C0139

2шт.

22

KHJ33130

HOSE CLAMP

, Start Serial: D0139

2шт.

23

KBH12210

BRACKET

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

25

KRH12050

SEAL

1шт.
