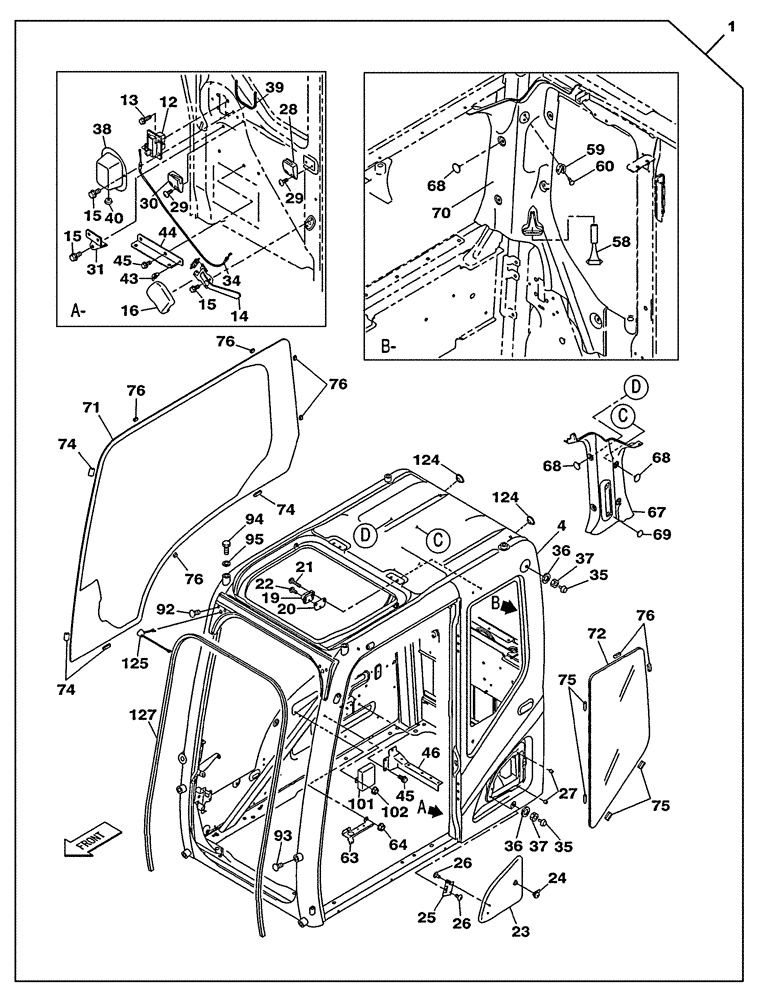

Запчасти Case CX210C LC (90.150.01[01]) - CAB - GLASS - INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN28390

CAB

1шт.

4

NSS

1шт.

12

161384A1

RH DOOR LOCK

1шт.

13

KHN18920

BOLT,Spcl, Hex

4шт.

14

KHN25630

LEVER

1шт.

15

KHN18880

BOLT

12шт.

16

KHN25730

COVER

1шт.

19

KHN14220

SUPPORT

1шт.

20

KHN2722

LEDGER PLATE

1шт.

21

KHN2681

SCREW

2шт.

22

KHN2682

SCREW,Spcl

5шт.

23

KHN25260

FLAP

1шт.

24

KHN26010

LOCK

1шт.

25

KHN25390

HINGE

1шт.

26

KHN18800

SCREW,Spcl, M6 x 12mm

4шт.

27

KHN25840

STOP

2шт.

28

KHN14230

SUPPORT

1шт.

29

KHN2768

SCREW,Spcl

4шт.

30

KHN14240

SUPPORT

1шт.

31

KHN25330

BRACKET, SUPPORTING

1шт.

34

KHN14320

BOWDEN CONTROL

1шт.

35

161356A1

STOP

2шт.

36

KHN25990

WASHER

2шт.

37

161357A1

NUT

2шт.

38

KHN2723

CAP ASSY.

1шт.

39

161385A1

SEAL

1шт.

40

161383A1

GROMMET

1шт.

43

KHN25940

COLLAR

4шт.

44

KHN25350

BRACKET, SUPPORTING

1шт.

45

KHN18860

BOLT,Spcl, Hex

5шт.

46

KHN25340

BRACKET, SUPPORTING

1шт.

58

KHN25950

HAMMER

1шт.

59

KHN14250

HOOK

1шт.

60

KHN14260

SCREW

2шт.

63

KHN25370

BRACKET, SUPPORTING

1шт.

64

KHN25980

NUT

2шт.

67

KHN28500

PADDING

1шт.

68

KHN26760

CLIP

9шт.

69

KHN26770

CLIP

2шт.

70

KHN28510

PADDING

1шт.

71

KHN25230

CAB GLASS

1шт.

72

KHN25240

CAB GLASS

1шт.

74

KHN14970

SPACER

4шт.

75

KHN14980

SPACER

6шт.

76

KHN14990

SPACER

11шт.

92

KHN25930

BOLT

4шт.

93

KHN22940

PLASTIC PLUG

4шт.

94

KHN16280

BOLT,Spcl

4шт.

95

KHN16290

WASHER

4шт.

101

KHN3392

ECU

1шт.

101

KHN3392R

REMAN ELECT CONTROL

CX210C LC CRAWLER EXCAVATOR - TIER 4 (NA) (2/12-)

1шт.

101

KHN3392C

CORE-ELECTRONIC CONT

Return Number

1шт.

102

KHN16030

SPECIAL NUT

2шт.

124

KHN14310

GROMMET

2шт.

125

KHN17130

HARNESS

2шт.

127

KHN25740

SEAL, GLASS

1шт.
