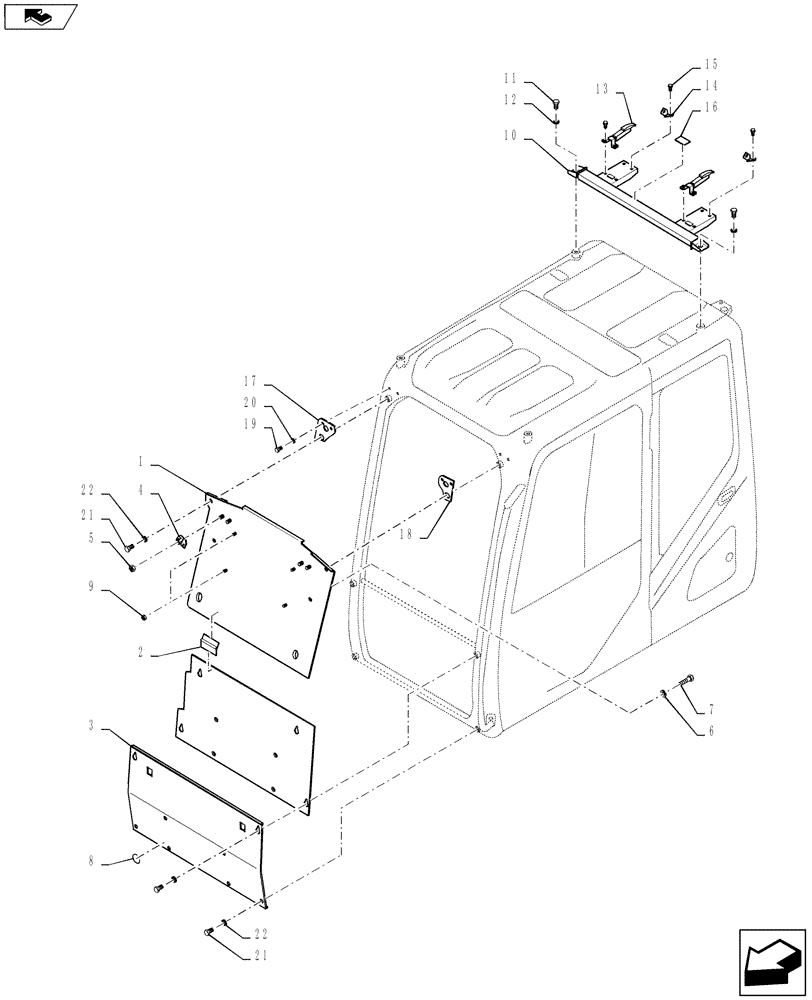

Запчасти Case CX210C LC (90.119.03) - CAB VANDAL GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN27380

COVER

1шт.

2

NSS

2шт.

3

KHN27390

COVER

1шт.

4

150856A1

STOP LOCK

2шт.

5

150469A1

FLANGE NUT

4шт.

6

164R010VR

JAM NUT

2шт.

7

159091A1

STOP

2шт.

8

151756A1

PLATE WASHER

2шт.

9

150469A1

FLANGE NUT

4шт.

10

KHN29130

BRACKET

1шт.

11

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

13

150854A1

FASTENER

2шт.

14

150856A1

STOP LOCK

2шт.

15

166350A1

BOLT

8шт.

16

KNJ2616

PLATE

3шт.

17

KHN27410

BRACKET, SUPPORTING

1шт.

18

KHN27430

BRACKET, SUPPORTING

1шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

21

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

22

150811A1

WASHER

6шт.

23

KHN29150

SPACER

Not Shown

1шт.

24

KHN29140

SPACER

Not Shown

2шт.

25

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

Not Shown

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Not Shown

2шт.
