(90.110.01[02]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, RIGHT

Запчасти Case CX210C LC (90.110.01[02]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

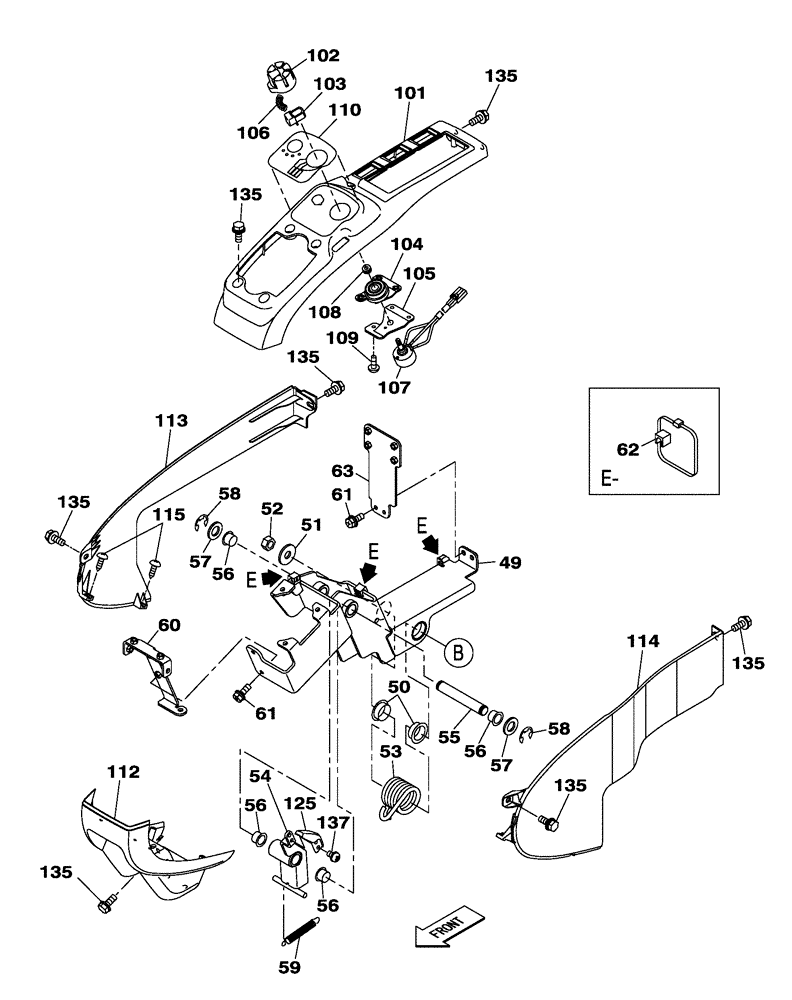

Схема запчастей Case CX210C LC - (90.110.01[02]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS
112
110
63
135
135
137
60
56
135
125
101
106
49
109
58
57
56
103
57
53
108
56
62
61
59
58
135
135
52
135
55
56
113
61
104
115
114
135
102
107
50
54
105
51
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

49

KHN24091

SUPPORT

1шт.

50

KHN2261

BUSHING

2шт.

51

151161A1

WASHER

1шт.

52

162R012VR

NUT

1шт.

53

KHN24001

SPRING

1шт.

54

KHN24041

BELLCRANK

1шт.

55

KHN24060

PIN

1шт.

56

KHN2249

BUSHING

4шт.

57

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

58

KHN2270

LOCKING RING

2шт.

59

KHN26200

SPRING

1шт.

60

KHN24100

BRACKET, SUPPORTING

1шт.

61

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

62

KHN17050

CLIP

3шт.

63

KHN24930

FRAME

1шт.

101

KHN12230

PADDING

1шт.

102

KHN15100

BUTTON

1шт.

103

KHN15110

BUTTON

1шт.

104

KHN15120

ELEC SUPPORT PLATE

1шт.

105

KHN15130

BRACKET

1шт.

106

KHN15140

SPRING

1шт.

107

KHR2751

SWITCH

1шт.

108

KHR2737

SELF-TAP SCREW

1шт.

109

KHN14071

DECAL

1шт.

110

KHR2741

PACKING

1шт.

112

KHN26410

COVER

1шт.

113

KHN26420

COVER

1шт.

114

KHN26430

COVER

1шт.

115

KHR2737

SELF-TAP SCREW

4шт.

125

KHN12360

LEVER

1шт.

135

KHN2132

BOLT,Hex Flg Hd, M6 x 16

18шт.

137

KHN23760

SCREW

4шт.
