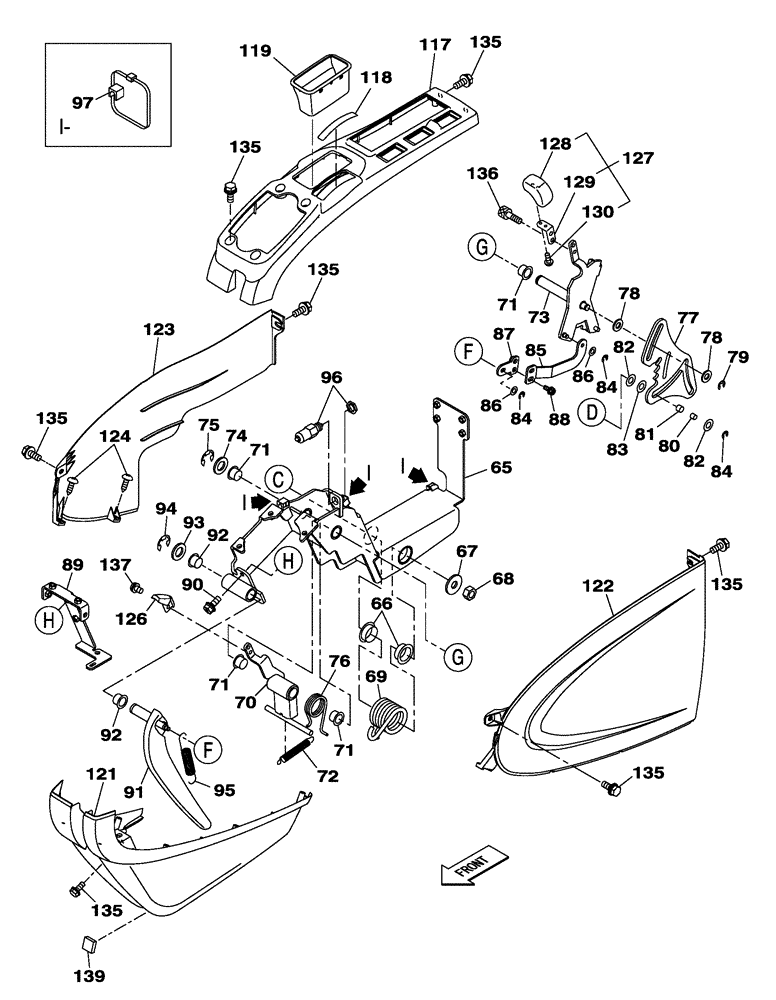

Запчасти Case CX210C LC (90.110.01[01]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, LEFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

65

KHN24111

SUPPORT

1шт.

66

KHN2261

BUSHING

2шт.

67

151161A1

WASHER

1шт.

68

162R012VR

NUT

1шт.

69

KHN24001

SPRING

1шт.

70

KHN24021

BELLCRANK

1шт.

71

KHN2249

BUSHING

4шт.

72

KHN26200

SPRING

1шт.

73

KHN24121

SUPPORT

1шт.

74

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

75

KHN2270

LOCKING RING

1шт.

76

KHN13290

SPRING

1шт.

77

KHN13301

PLATE

1шт.

78

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

79

378J0080Z

RING

1шт.

80

KHN13310

BUSHING

1шт.

81

KHN13320

ROLLER

1шт.

82

150529A1

WASHER

2шт.

83

150409A1

WASHER

1шт.

84

378J0050Z

CIRCLIP

3шт.

85

KHN24140

SHEET METAL

1шт.

86

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

87

KHN24150

SHEET METAL

1шт.

88

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

89

KHN24130

BRACKET, SUPPORTING

1шт.

90

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

91

KHN13331

LEVER

1шт.

92

KHN2249

BUSHING

2шт.

93

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

94

KHN2270

LOCKING RING

1шт.

95

KHN13350

SPRING

1шт.

96

KHR14930

LIMIT SWITCH

1шт.

97

KHN17050

CLIP

3шт.

117

KHN26440

TRIM PANEL

1шт.

118

KHN16770

DECAL

1шт.

119

KHN23770

CASE

1шт.

121

KHN26450

COVER

1шт.

122

KHN12350

PADDING

1шт.

123

KHN26460

PADDING

1шт.

124

KHR2737

SELF-TAP SCREW

6шт.

126

KHN12370

LEVER

1шт.

127

KHN17080

HANDLE GRIP

Inc. 128 - 130

1шт.

128

KHN12380

GRIP

1шт.

129

KHN17090

BRACKET, SUPPORTING

1шт.

130

KHR2733

SELF-TAP SCREW

2шт.

135

KHN2132

BOLT,Hex Flg Hd, M6 x 16

18шт.

136

KHN17280

BOLT,Hex Skt Hd

2шт.

137

KHN23760

SCREW

4шт.

139

KHN17560

SEAL

1шт.
