(90.108.05) - DECALS - EXTERIOR

Запчасти Case CX210C LC (90.108.05) - DECALS - EXTERIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

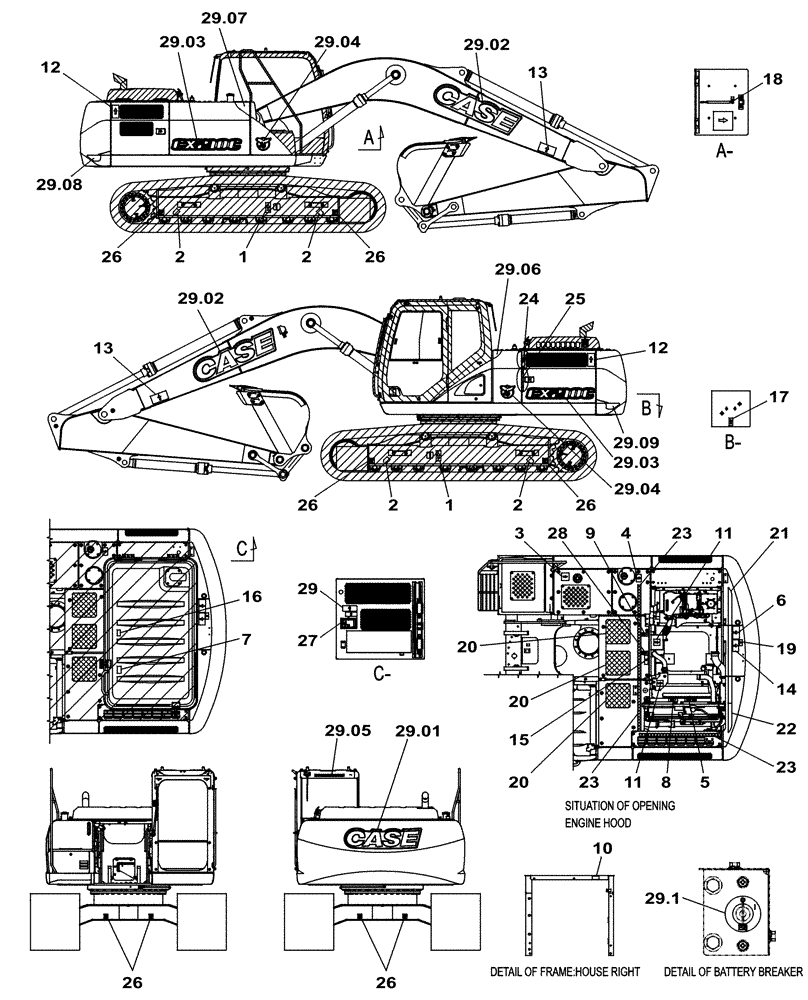

Схема запчастей Case CX210C LC - (90.108.05) - DECALS - EXTERIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
20
1
20
29.07
29.02
29.09
20
8
19
26
23
23
29.01
1
14
29
4
2
29.08
29.03
29.03
26
12
29.04
26
22
24
10
29.1
13
16
23
21
2
17
1
2
26
1
9
29.06
1
6
1
15
29.04
3
29.05
2
25
27
29.02
18
13
28
26
5
26
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP17390

ADHESIVE

Warning

2шт.

2

P7947565H

4шт.

2

KHP19380

LABEL

4шт.

3

KHP11700

WARNING DECAL

Warning

1шт.

3-1

KHP18120

LABEL

Warning - Not Illustrated Located just AFT of ref# 3

1шт.

4

168104A1

DECAL

Warning

1шт.

5

168101A1

DECAL

Warning

1шт.

6

168110A1

DECAL

Warning

1шт.

7

168109A1

DECAL

Warning

1шт.

8

168111A1

DECAL

Warning

1шт.

9

168112A1

DECAL

Warning

1шт.

10

KHP17410

ADHESIVE

Warning

1шт.

11

KHP18130

LABEL

Warning

2шт.

12

KHP17510

DECAL

Warning

2шт.

13

P4051598L

DECAL

Warning

2шт.

14

KHP12220

DECAL

Warning

1шт.

15

KHP17980

LABEL

Warning

1шт.

16

KHP12230

DECAL

Warning

1шт.

17

KHP17430

WARNING DECAL

Warning

1шт.

18

KRP11512

DECAL,Lub Chart

1шт.

19

KHP13160

DECAL

1шт.

20

KHP1259

ANTI-SKID STRIP

3шт.

21

KRP11460

ADHESIVE STRIP

1шт.

22

KRP11470

ADHESIVE STRIP

1шт.

23

KHP1217

DECAL

1шт.

24

KHP0973

ADHESIVE STRIP

1шт.

25

KHP1185

ADHESIVE STRIP

1шт.

26

KHP15201

DECAL

16шт.

27

KHP15770

DECAL

Warning

1шт.

28

KHP17440

ADHESIVE

Warning

1шт.

29

KHP17590

LABEL

1шт.

29.01

84517111

DECAL

Case Logo on Counterweight (Replaced KHP19400)

1шт.

29.02

84517113

DECAL

Case Logo on Boom (Replaced KHP19390)

2шт.

29.03

84573924

DECAL

CX210C Model Number (Replaced KRP16920)

2шт.

29.04

84495413

DECAL,220mm

Eagle 220mm

2шт.

29.05

84468361

DECAL,436mm x 27mm H

CASECE.COM 475mm

1шт.

29.06

KHP17550

DECAL

1шт.

29.07

KHP12870

DECAL

1шт.

29.08

KRP12580

DECAL

1шт.

29.09

KRP12590

DECAL

1шт.

29.1

KHP20210

LABEL

Battery SW

1шт.

KHP18060

LABEL

Warning - Not Illustrated Located by Toolbox

1шт.
