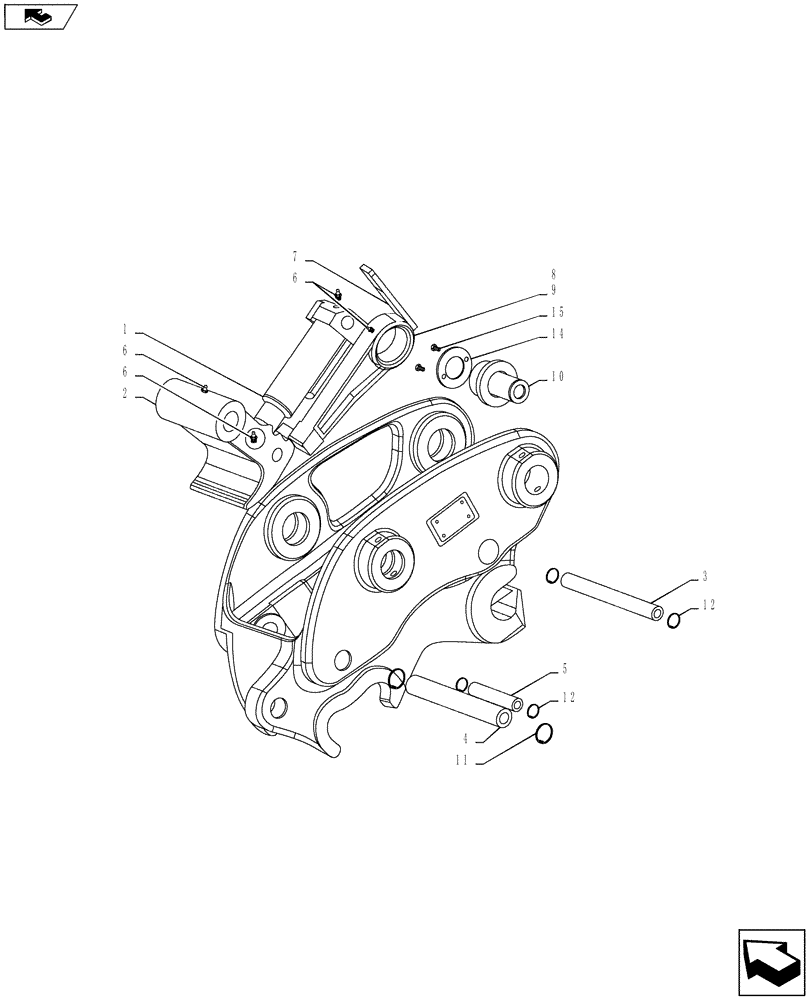

Запчасти Case CX210C LC (88.100.28[01]) - QUICK COUPLER - MILLER (405487A1) (88) - ACCESSORIES

1

386670A1

HYDRAULIC CYLINDER

1шт.

2

87708730

HOOK

1шт.

3

84236195

PIN

Cylinder

1шт.

4

84236196

PIN

Hook

1шт.

5

84236197

PIN

Cylinder Hook

1шт.

6

380579A1

NIPPLE, LUBE

NIPPLE Grease

4шт.

7

386671A1

SPRING

Blocking Bar

1шт.

8

87708738

BUSHING

1шт.

9

386672A1

LOCKING BAR

Assy.

1шт.

10

84236202

LOCKING BAR

Pivot Boss

1шт.

11

84236131

CIRCLIP

(Hook Pin)

2шт.

12

84236128

CIRCLIP

(Cylinder Hook Pin)

2шт.

12

84236128

CIRCLIP

(Cylinder Pin)

2шт.

13

394456A1

HOSE

Coupler Yellow (Not Shown)

1шт.

14

84236132

LOCKING BAR

Retaining Plate

1шт.

15

84235989

SCREW

Retaining Plate

2шт.

16

403878A1

SEAL KIT

Cylinder (Not Shown)

1шт.

17

394453A1

HOSE

Coupler Blue (Not Shown)

1шт.

18

NSS

NOT SOLD SEPARAT

Boom Hose Blue (Not Shown)

1шт.

19

NSS

NOT SOLD SEPARAT

Boom Hose Yellow (Not Shown)

1шт.

21

84189989

SOLENOID VALVE

(Not Shown)

1шт.

22

84236227

ELECTROMAGNET

Solenoid Coil (Not Shown)

1шт.

23

379532A1

BUZZER

Cab (Not Shown)

1шт.

24

378255A1

BUZZER

Cab (Not Shown)

1шт.

25

419504A1

TOGGLE SWITCH

Rocker (Not Shown)

1шт.

26

NSS

NOT SOLD SEPARAT

Pressure Line Red (Not Shown)

1шт.

27

NSS

NOT SOLD SEPARAT

Tank Line Green (Not Shown)

1шт.

28

84236228

DECAL

Cab (Not Shown)

1шт.
