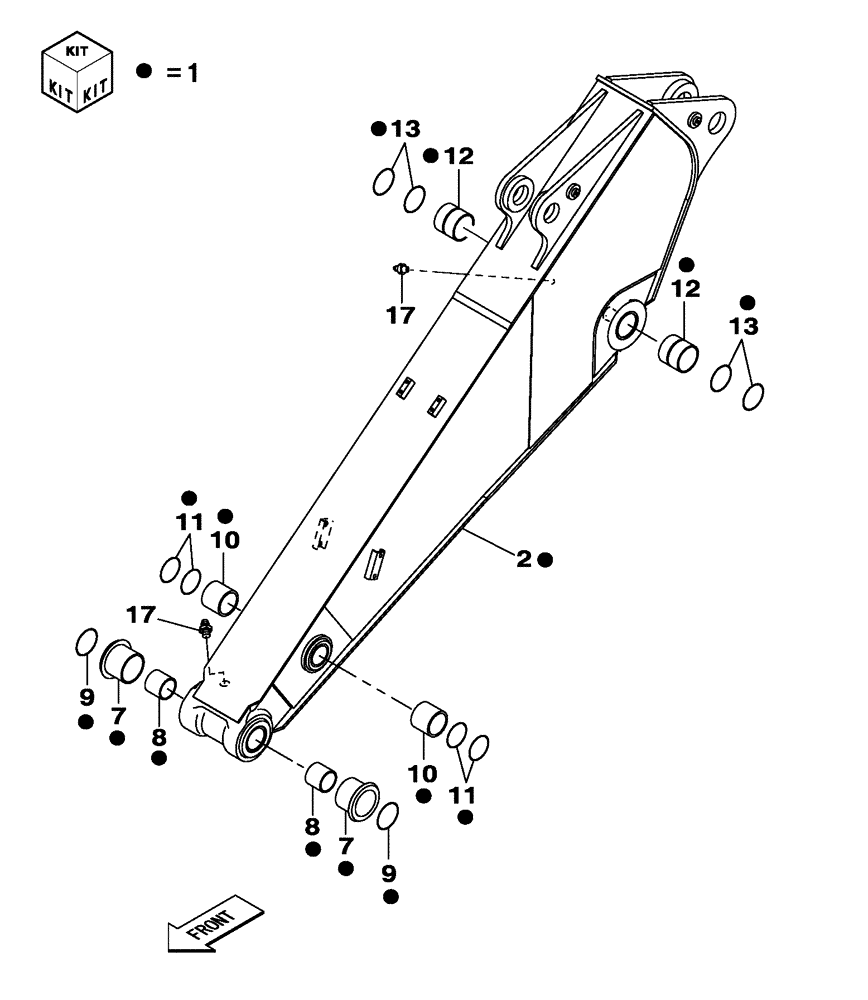

Запчасти Case CX210C LC (84.912.03) - DIPPER - 2.40 M (84) - BOOMS, DIPPERS & BUCKETS

1

KRV32370

DIPPER

Std 2.40M, Inc. 2, 7 - 13

1шт.

2

NSS

1шт.

7

KRV2408

BUSHING

2шт.

8

KRV10910

BUSHING

2шт.

9

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

10

KRV2396

BUSHING,75mm ID x 90mm OD x 60mm L

2шт.

11

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

12

KRV2397

SELF LUB RING

2шт.

13

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

4шт.

17

153630A1

LUBE NIPPLE

2шт.
