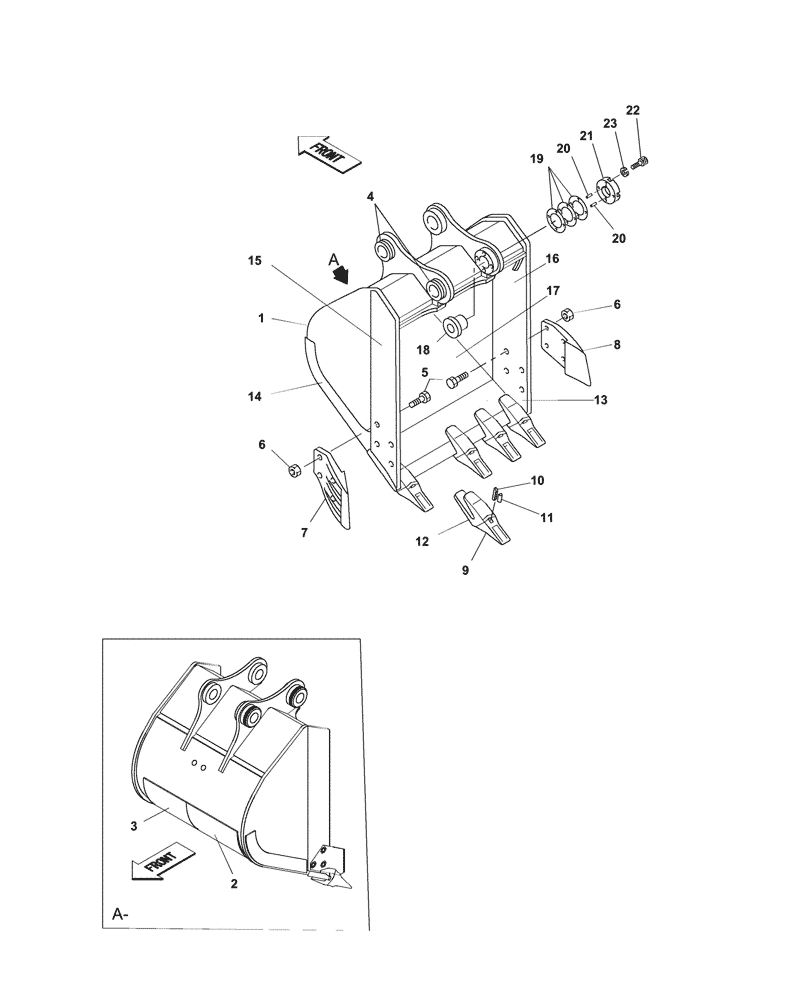

Запчасти Case CX210C LC (84.100.11[01]) - VAR - 461044 - BUCKET (0,90M³ X 1230MM) (84) - BOOMS, DIPPERS & BUCKETS

1

KRV20750

BUCKET

0.90M3x1230mm, ASSY, Incl 1.01 - 15

1шт.

1.01

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

1.02

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

2

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

2шт.

2.01

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

3шт.

3

626-24065

IDLER,Hex, M24 x 65mm, Cl 10.9, Full Thd

8шт.

4

829-1324

NUT

8шт.

5

KRV1169

CUTTING EDGE

1шт.

6

KRV1168

CUTTING EDGE

1шт.

7

KRV3716

BUCKET TOOTH POINT

5шт.

8

KRV3718

PIN

5шт.

9

KRV3717

BUCKET TOOTH SHANK

5шт.

9.01

KRV25820

Lip Bucket

1шт.

9.02

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

9.03

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

9.04

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

9.05

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

10

KRV2416

BUSHING

1шт.

11

KRV1159

SHIM

1шт.

12

837-12032

DOWEL,M12 x 32

2шт.

13

KRV1518

PLATE

1шт.

14

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

4шт.

15

184-016VR

SPRING WASHER

4шт.
