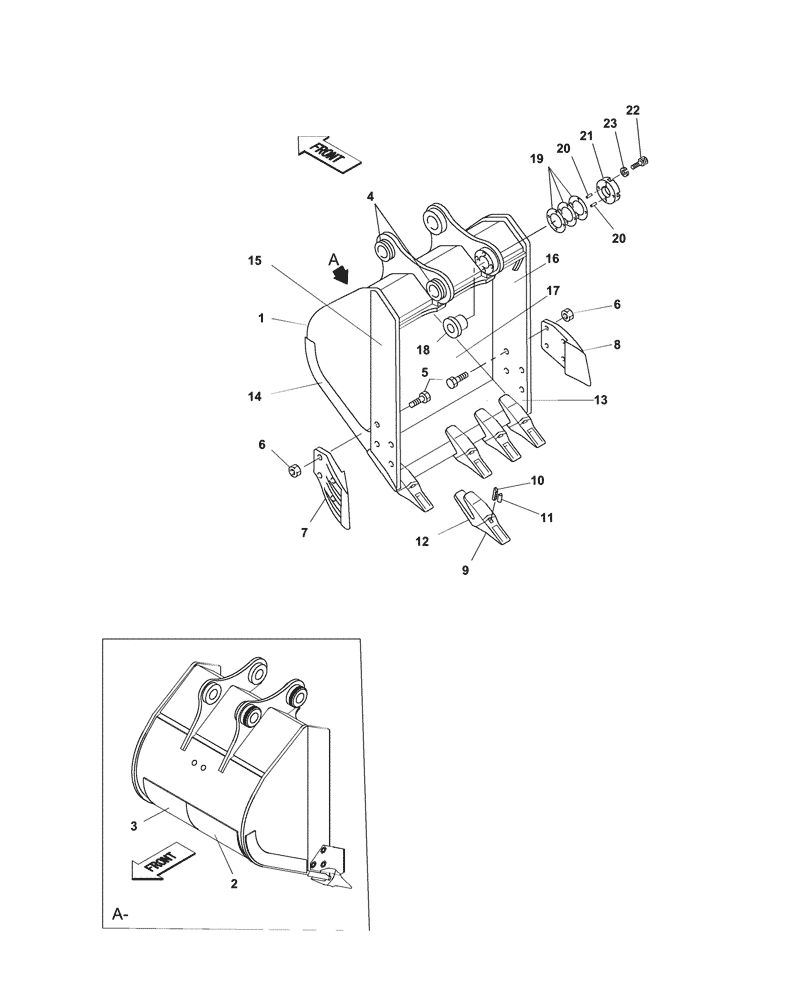

Запчасти Case CX210C LC (84.100.10) - VAR - 461044 - BUCKET (0,90M³ X 1230MM) (84) - BOOMS, DIPPERS & BUCKETS

1

KRV2700

0.90M3x1230mm, ASSY, Incl 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

2шт.

5

626-24065

IDLER,Hex, M24 x 65mm, Cl 10.9, Full Thd

8шт.

6

829-1324

NUT

8шт.

7

KRV1169

CUTTING EDGE

Side

1шт.

8

KRV1168

CUTTING EDGE

Side

1шт.

9

156579A1

BUCKET TOOTH POINT

5шт.

10

KHV11830

PIN

5шт.

11

KHV11840

RUBBER BLOCK

5шт.

12

KRV1157

ADAPTER

5шт.

13

KRV25620

Lip Bucket

1шт.

14

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

18

KRV2416

BUSHING

1шт.

19

KRV1159

SHIM

7шт.

20

837-12032

DOWEL,M12 x 32

2шт.

21

KRV1518

PLATE

1шт.

22

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

4шт.

23

184-016VR

SPRING WASHER

4шт.
