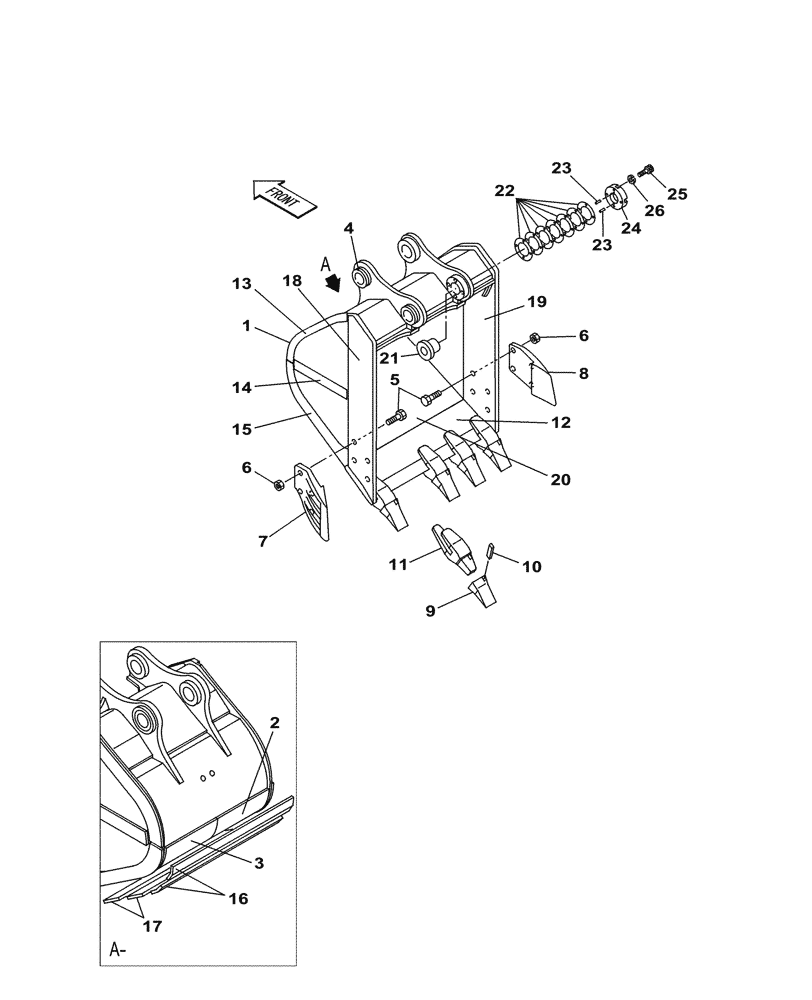

Запчасти Case CX210C LC (84.100.08) - VAR - 461492 - HEAVY DUTY, BUCKET (0,8M³ X 1136MM) (0,8M³ X 1136MM) (84) - BOOMS, DIPPERS & BUCKETS

1

KRV20730

BUCKET

Heavy Duty, 0.8M3x1136mm, ASSY, Incl 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

2шт.

5

626-24065

IDLER,Hex, M24 x 65mm, Cl 10.9, Full Thd

8шт.

6

829-1324

NUT

8шт.

7

KRV1169

CUTTING EDGE

Side

1шт.

8

KRV1168

CUTTING EDGE

Side

1шт.

9

KRV2522

BUCKET TOOTH POINT

5шт.

10

KRV2524

PIN

5шт.

11

KRV2523

ADAPTER

5шт.

12

KRV25720

Lip Bucket

1шт.

13

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

17

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

18

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

2шт.

19

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

2шт.

20

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

21

KRV2416

BUSHING

1шт.

22

KRV1159

SHIM

7шт.

23

837-12032

DOWEL,M12 x 32

2шт.

24

KRV1518

PLATE

1шт.

25

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

4шт.

26

184-016VR

SPRING WASHER

4шт.
