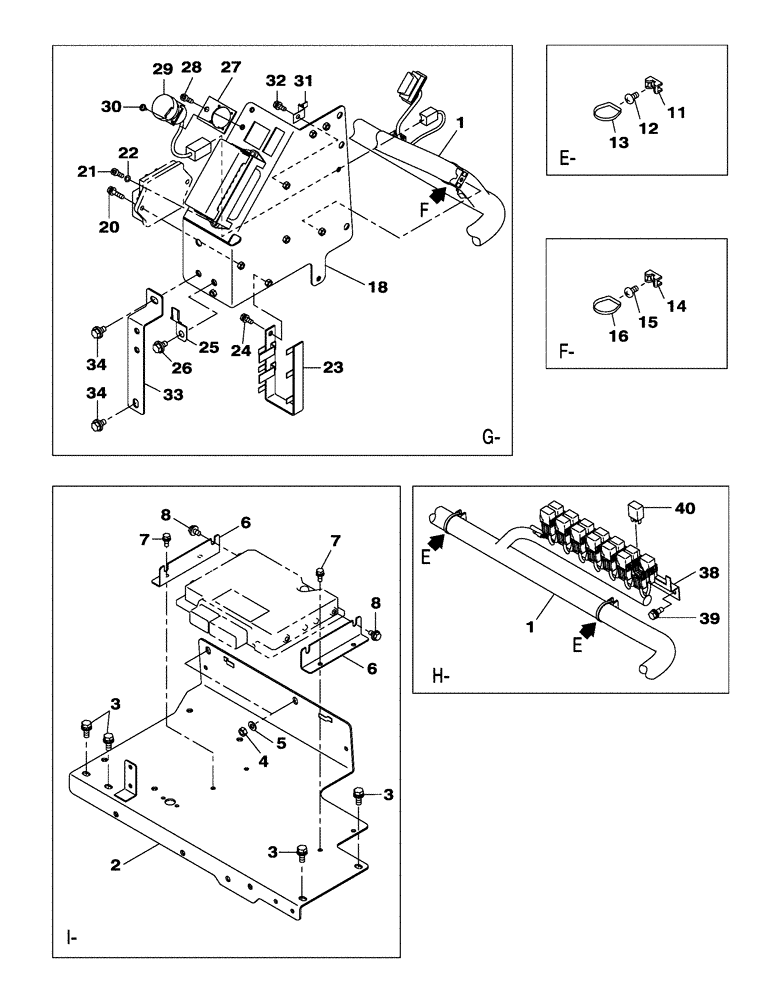

Запчасти Case CX210C LC (55.510.01[02]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT (55) - ELECTRICAL SYSTEMS

1

KHR30840

WIRE HARNESS

1шт.

2

KHR28440

BRACKET, SUPPORTING

1шт.

3

166345A1

BOLT

4шт.

4

162R008SR

SPRING WASHER

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

KHR28500

BRACKET, SUPPORTING

2шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

8

166345A1

BOLT

4шт.

11

150860A1

COLLAR

2шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

13

150496A1

MOUNTING CLIP

2шт.

14

150860A1

COLLAR

2шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

16

150496A1

MOUNTING CLIP

2шт.

18

KHR28450

BRACKET, SUPPORTING

1шт.

20

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

21

108R006Y020R

BOLT

2шт.

22

892-11006

LOCK WASHER,M6

2шт.

23

KHR28480

BRACKET, SUPPORTING

1шт.

24

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

25

KHR3748

COLLAR

1шт.

26

166345A1

BOLT

1шт.

27

KHR28580

BRACKET, SUPPORTING

1шт.

28

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

29

KHR19970

WIRE HARNESS

1шт.

30

162061A1

SCREW,Pan Hd, M3 x 8mm

4шт.

31

165405A1

CLIP

1шт.

32

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

33

KHR28460

BRACKET, SUPPORTING

1шт.

34

166345A1

BOLT

2шт.

38

KHR24760

BRACKET, SUPPORTING

1шт.

39

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

40

KHR3802

RELAY

14шт.
