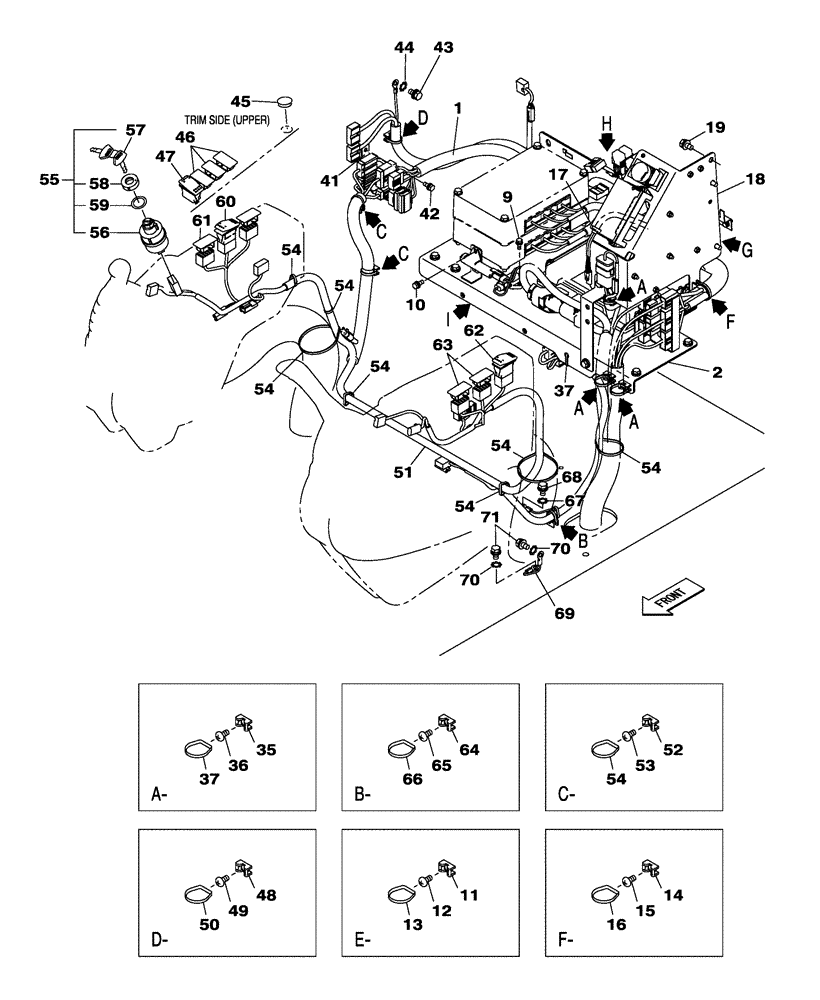

Запчасти Case CX210C LC (55.510.01[01]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT (55) - ELECTRICAL SYSTEMS

1

KHR30840

WIRE HARNESS

1шт.

2

KHR28440

BRACKET, SUPPORTING

1шт.

9

KHR1831

BOLT

2шт.

10

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

11

150860A1

COLLAR

2шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

13

150496A1

MOUNTING CLIP

2шт.

14

150860A1

COLLAR

2шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

16

150496A1

MOUNTING CLIP

2шт.

17

150496A1

MOUNTING CLIP

1шт.

18

KHR28450

BRACKET, SUPPORTING

1шт.

19

166345A1

BOLT

3шт.

35

150860A1

COLLAR

3шт.

36

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

37

150496A1

MOUNTING CLIP

4шт.

41

KHR28490

BRACKET, SUPPORTING

1шт.

42

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

43

167518A1

BOLT

1шт.

44

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

45

KHR2743

CAP COVER

1шт.

46

KHR10390

CAP

3шт.

47

KHR28540

SWITCH

Horn

1шт.

48

150860A1

COLLAR

1шт.

49

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

50

150496A1

MOUNTING CLIP

1шт.

51

KHR24681

WIRE HARNESS

1шт.

52

150860A1

COLLAR

2шт.

53

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

54

150496A1

MOUNTING CLIP

7шт.

55

KHR20050

IGNITION SWITCH

Inc. 56 - 59

1шт.

56

KHR3078

IGNITION SWITCH

1шт.

57

KHR20070

IGNITION KEY

2шт.

58

KHR3080

CAP

1шт.

59

KHR3081

WASHER

1шт.

60

KHR15850

ROCKER SWITCH

Travel Alarm

1шт.

61

KHR10390

CAP

2шт.

62

KHR28530

SWITCH

Emergency stop

1шт.

63

KHR10390

CAP

2шт.

64

150860A1

COLLAR

1шт.

65

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

66

150496A1

MOUNTING CLIP

1шт.

67

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

68

167518A1

BOLT

1шт.

69

KHR11240

GROUND CABLE

1шт.

70

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

71

167518A1

BOLT

2шт.
