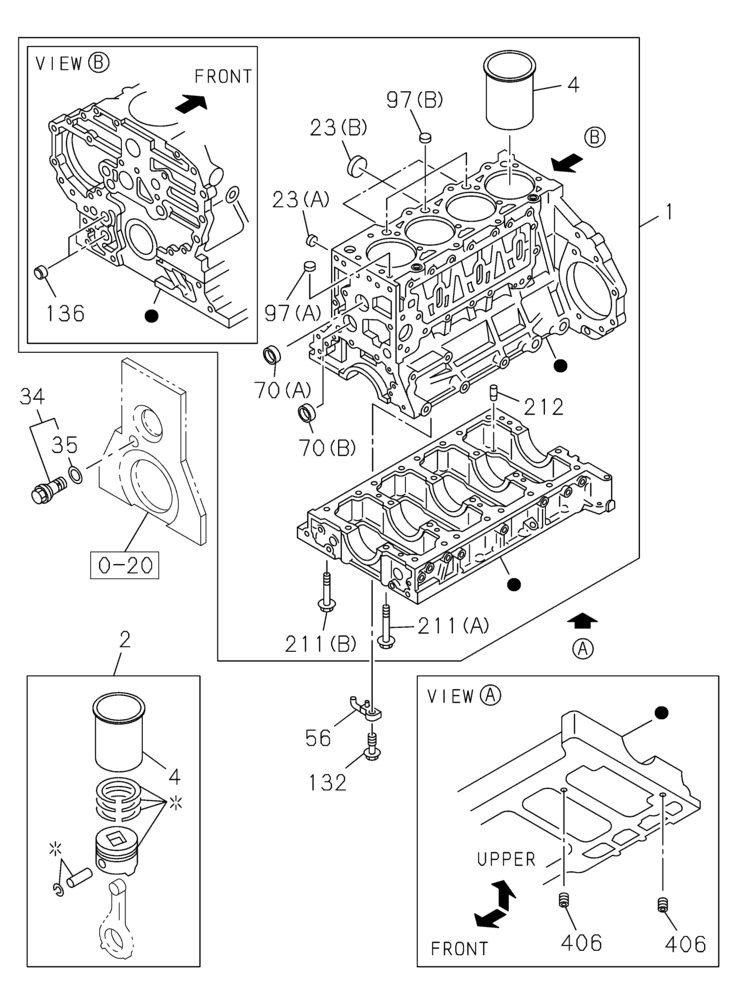

Запчасти Case CX210C LC (10.001.03[01]) - CYLINDER BLOCK (10) - ENGINE

0-20

Engine Flywheel Housing, See Figure(s) 10.103.01 01

1шт.

1

84389127

CYLINDER BLOCK,4 Cylinders, W/O Turbocharger

Inc. 4, 23A, 23B, 70A, 70B, 97B, 136, 211A, 211B, 212, 406, Also See Figure(s) 10.001.03 02

1шт.

2

84387955

LINER, ENGINE CYLIND

OD Grade=1X, Incl. 4

4шт.

2

84387956

LINER, ENGINE CYLIND

OD Grade=3X, Incl. 4

4шт.

4

84388066

LINER, ENGINE CYLIND

OD Grade=1X, ID=N

4шт.

4

84388067

LINER, ENGINE CYLIND

OD Grade=3X, ID=N

4шт.

23a

289076A1

CUP

1шт.

23b

87398694

CUPEL

3шт.

34

84387983

VALVE PRESSURE RELIE

Incl. 35

1шт.

35

72109764

SEAL

1шт.

56

84389360

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

4шт.

70a

289076A1

CUP

1шт.

70b

87379455

PLUG

4шт.

97a

353962A1

PLUG

1шт.

97b

368501A1

CUP

3шт.

132

84268324

VALVE, CHECK

4шт.

136

84389383

BUSHING

2шт.

211a

438151A1

BOLT

10шт.

211b

87595398

BOLT

17шт.

212

72216708

ROLL PIN

2шт.

406

289415A1

PLUG

2шт.
