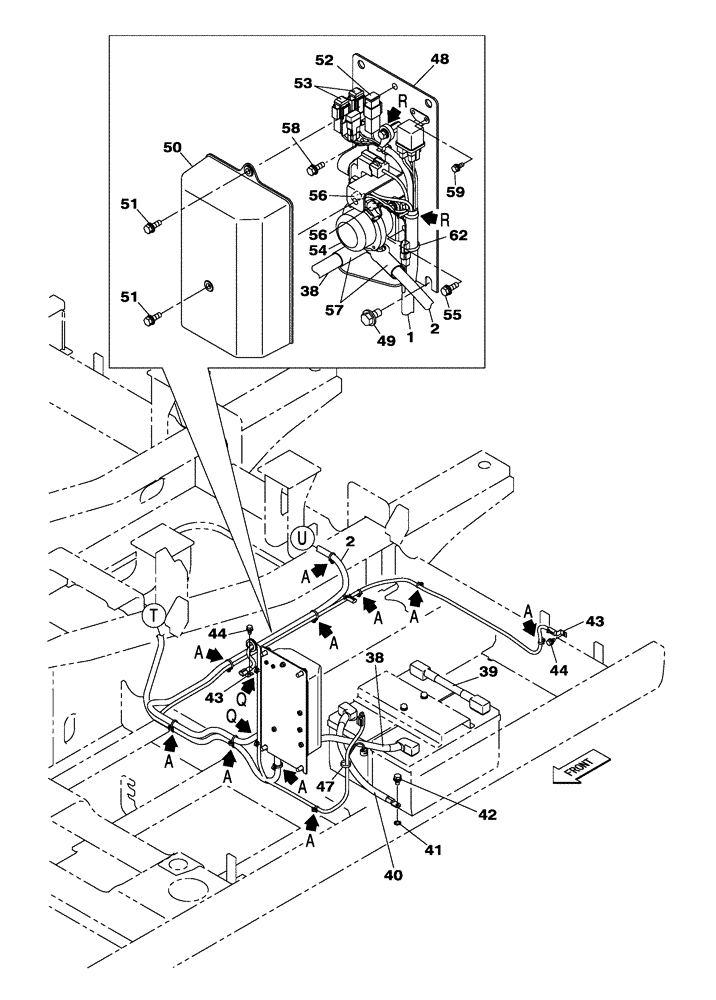

Запчасти Case CX210C LC (55.100.01[03]) - CHASSIS ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

KRR16741

WIRE HARNESS

1шт.

2

KHR11050

ELECTRIC CABLE

1шт.

21

KHR10220

MOUNTING CLIP

57шт.

22

150496A1

MOUNTING CLIP

57шт.

38

KHR13910

POS BATTERY CABLE

1шт.

39

KHR15070

NEG BATTERY CABLE

1шт.

40

KHR13920

POS BATTERY CABLE

1шт.

41

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

42

167518A1

BOLT

1шт.

43

158962A1

CLIP

3шт.

44

167518A1

BOLT

3шт.

45

KHR10220

MOUNTING CLIP

3шт.

46

150496A1

MOUNTING CLIP

3шт.

47

150496A1

MOUNTING CLIP

1шт.

48

KHR28590

BRACKET, SUPPORTING

1шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

50

KHR19120

COVER

1шт.

51

KHJ1215

BOLT,Spcl

2шт.

52

159902A1

FUSE

65A fuse - starter

1шт.

53

KHR3850

FUSE

2шт.

54

159897A1

RELAY

1шт.

55

KHJ1215

BOLT,Spcl

2шт.

56

159171A1

CAP

2шт.

57

162212A1

TERMINAL CONNECTOR

2шт.

58

KHJ1215

BOLT,Spcl

2шт.

59

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

60

KHR2584

CLAMP

2шт.

61

KHJ1215

BOLT,Spcl

2шт.

62

150496A1

MOUNTING CLIP

1шт.
