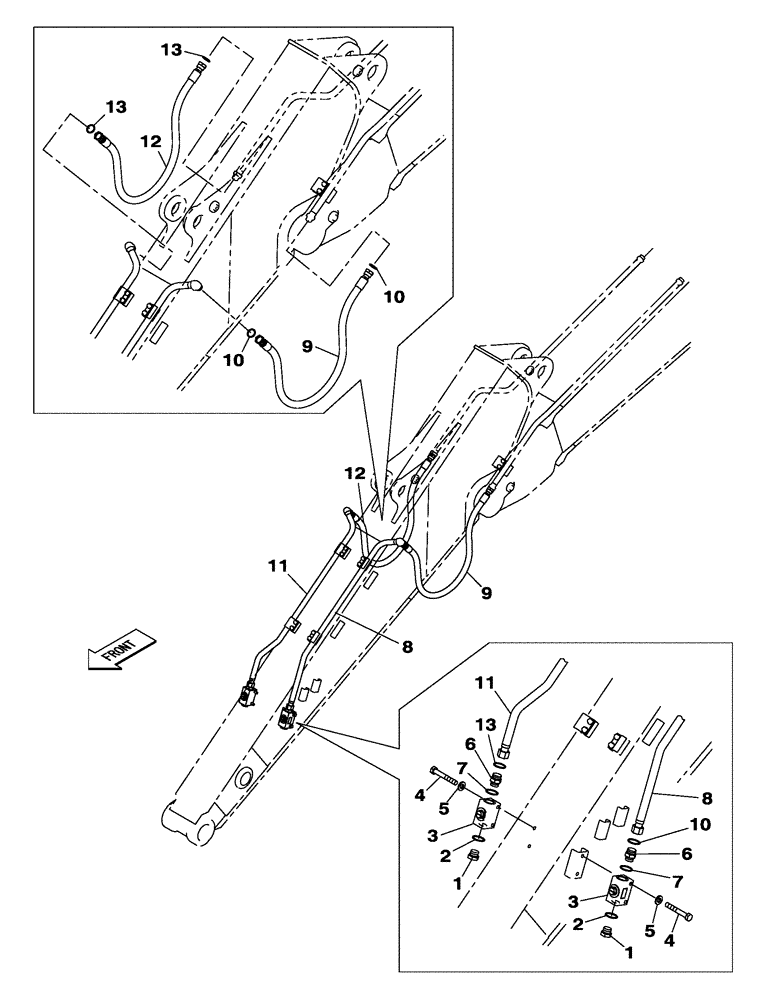

Запчасти Case CX210C LC (35.737.03) - HYDRAULIC CIRCUIT - DIPPER 2.90 M - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

162659A1

PLUG

Inc. 2

2шт.

2

154523A1

O-RING

1шт.

3

KHV10430

SHUT-OFF VALVE

2шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

Inc. 7

2шт.

7

154523A1

O-RING

1шт.

8

KRV23240

HYD TUBE,26 mm ID x 34 mm OD

1шт.

9

KRV21920

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

11

KRV23250

HYD TUBE,26 mm ID x 34 mm OD

1шт.

12

KRV21920

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.
