(35.737.01) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER

Запчасти Case CX210C LC (35.737.01) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

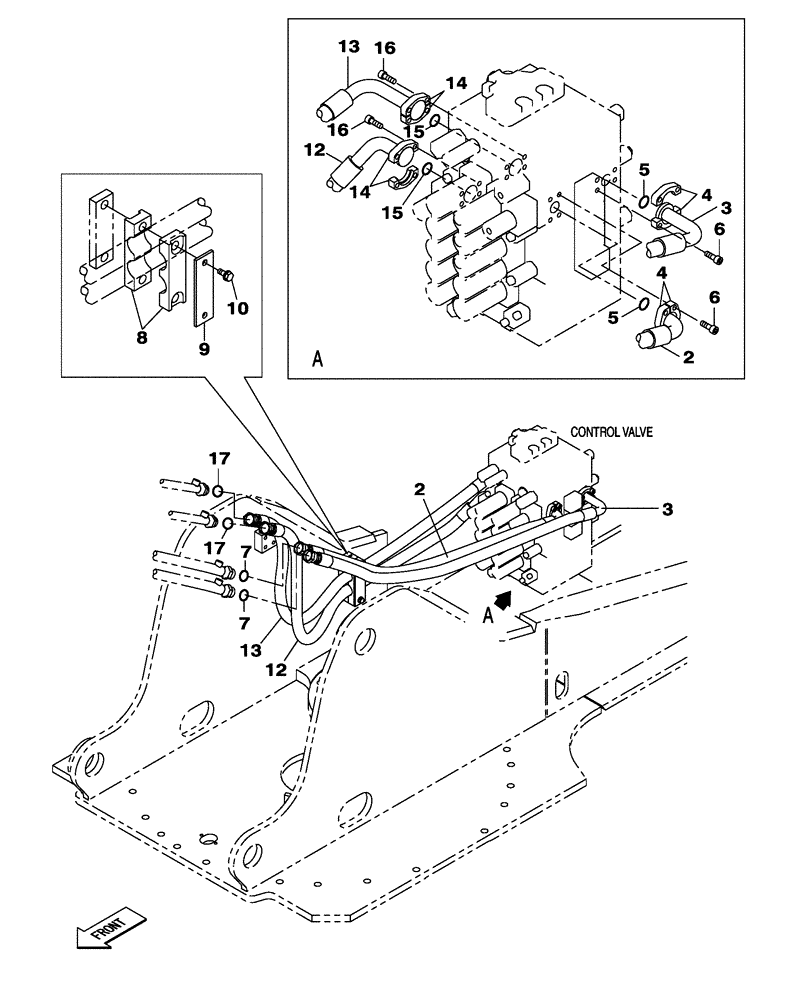

Схема запчастей Case CX210C LC - (35.737.01) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS
6
6
9
4
12
15
17
14
5
16
16
17
2
13
2
7
5
15
3
4
10
13
7
12
14
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KRJ29870

HYDRAULIC HOSE

1шт.

3

KRJ10841

HYDRAULIC HOSE

1шт.

4

KRJ2682

FLANGE

4шт.

5

155211A1

O-RING

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KBJ14410

HOSE CLAMP

2шт.

9

KRJ10870

PLATE

1шт.

10

166052A1

BOLT

2шт.

12

KRJ29850

HYDRAULIC HOSE

1шт.

13

KRJ29860

HYDRAULIC HOSE

1шт.

14

KRJ2682

FLANGE

4шт.

15

155211A1

O-RING

2шт.

16

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

Выбрано товаров: 15
