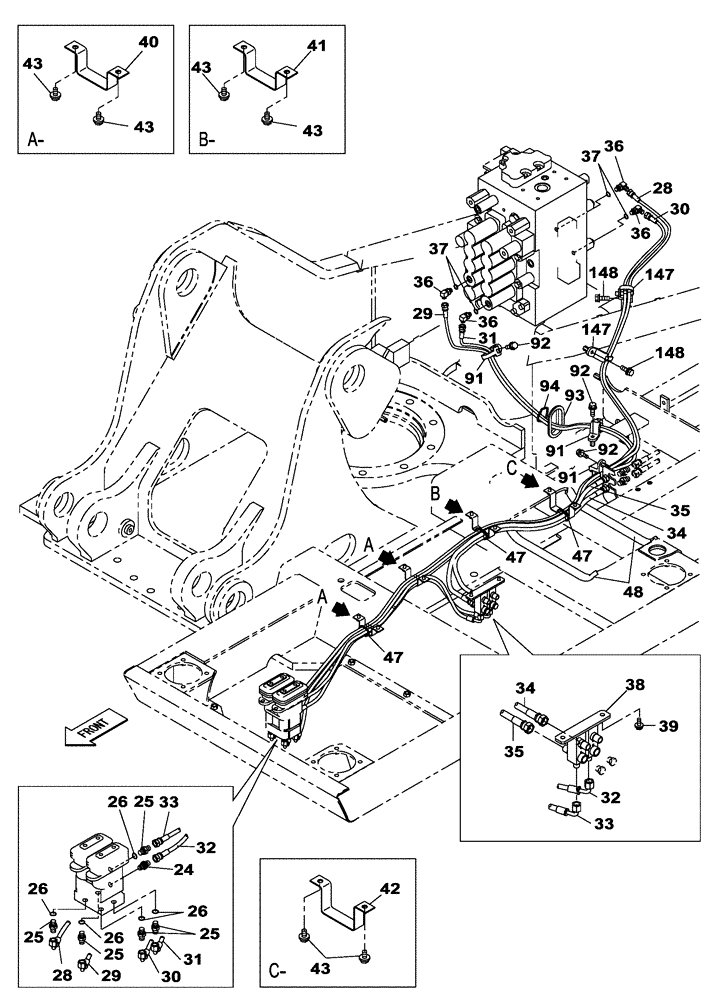

Запчасти Case CX210C LC (35.359.15) - HYDRAULIC CIRCUIT - TRAVEL PILOT - WITHOUT SAFETY VALVE (35) - HYDRAULIC SYSTEMS

24

161841A1

HYD CONNECTOR

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

5шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

1шт.

29

KHJ2248

HOSE

1шт.

30

KHJ17980

HOSE

1шт.

31

KHJ2199

HOSE

1шт.

32

KHJ2092

HOSE

1шт.

33

KHJ2092

HOSE

1шт.

34

KHJ23000

FLEXIBLE HOSE

1шт.

35

KHJ2623

HOSE

1шт.

36

KHJ0917

ADAPTER

4шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

38

KRJ27381

HYDRAULIC MANIFOLD

1шт.

39

166350A1

BOLT

2шт.

40

KHJ1220

COLLAR

2шт.

41

KHJ13770

COLLAR

2шт.

42

KHJ24020

CLAMP

2шт.

43

166345A1

BOLT

12шт.

47

150498A1

MOUNTING CLIP

3шт.

48

MFJ51530

SEAL PROTECTION

2шт.

91

KHR2581

CLAMP

3шт.

92

KHJ1215

BOLT,Spcl

3шт.

93

KRH10610

SEAL PROTECTION

1шт.

94

150496A1

MOUNTING CLIP

3шт.

147

KHJ1215

BOLT,Spcl

2шт.

148

150498A1

MOUNTING CLIP

1шт.
