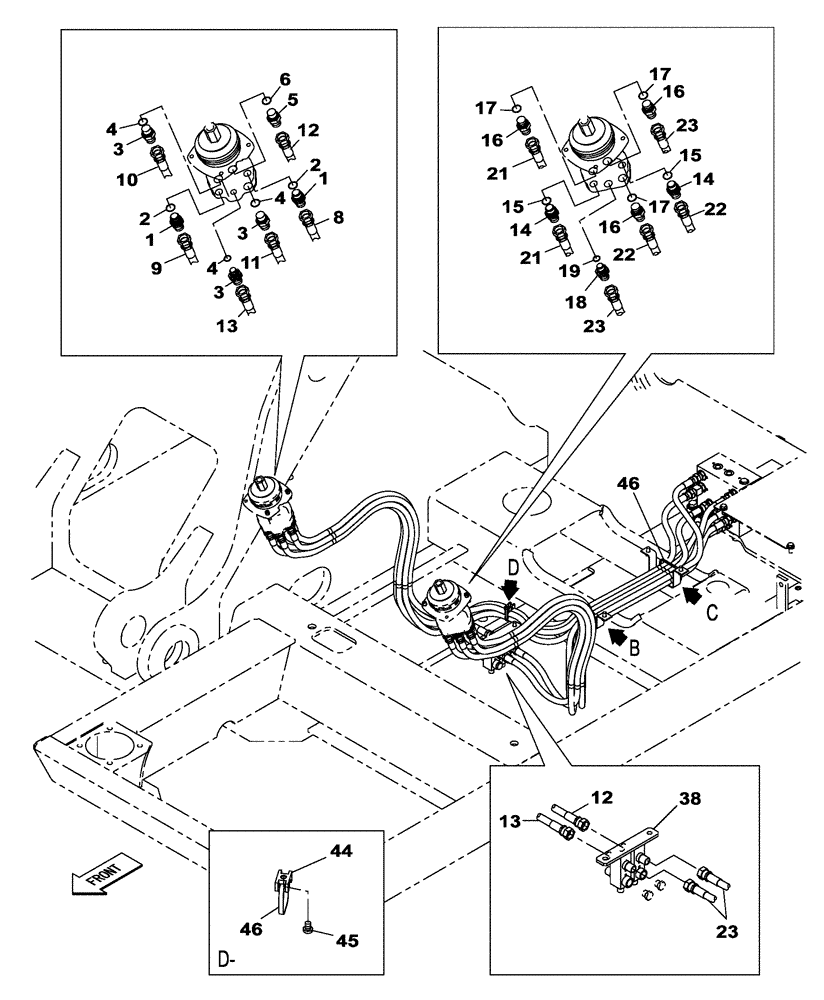

Запчасти Case CX210C LC (35.359.14) - HYDRAULIC CIRCUIT - ATTACHMENT CONTROL VALVE PILOT (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

2шт.

2

154475A1

O-RING

1шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

3шт.

4

154475A1

O-RING

1шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

159211A1

HYDRAULIC HOSE

1шт.

9

KHJ22430

HYDRAULIC HOSE

1шт.

10

159211A1

HYDRAULIC HOSE

1шт.

11

159211A1

HYDRAULIC HOSE

1шт.

12

159213A1

HYDRAULIC HOSE

1шт.

13

159213A1

HYDRAULIC HOSE

1шт.

14

KHJ1402

ADAPTER

2шт.

15

154475A1

O-RING

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

3шт.

17

154475A1

O-RING

1шт.

18

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

159217A1

HYDRAULIC HOSE

2шт.

22

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

23

159213A1

HYDRAULIC HOSE

2шт.

38

KRJ27381

HYDRAULIC MANIFOLD

1шт.

44

150860A1

COLLAR

1шт.

45

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

46

150496A1

MOUNTING CLIP

2шт.
