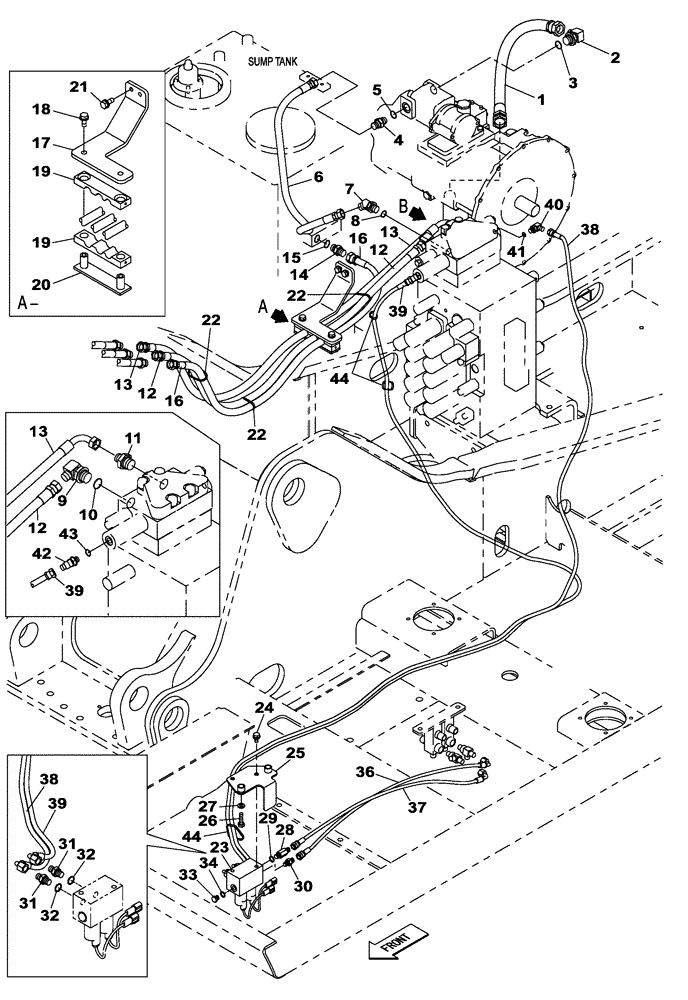

Запчасти Case CX210C LC (35.322.03) - HYDRAULIC CIRCUIT - SMALL FLOW - WITH VALVE, SOLENOID (35) - HYDRAULIC SYSTEMS

1

KSJ12940

HYDRAULIC HOSE

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Inc. 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Inc. 5

1шт.

5

154487A1

O-RING

1шт.

6

KHJ15660

HYDRAULIC HOSE

1шт.

7

157585A1

ELBOW

Inc. 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

Inc. 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KRJ29960

HYDRAULIC HOSE

1шт.

13

KRJ29970

HYDRAULIC HOSE

1шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Inc. 15

1шт.

15

154487A1

O-RING

1шт.

16

KBJ12450

HYDRAULIC HOSE,12.70 mm ID x 1580.00 mm

1шт.

17

KRJ29680

BRACKET

1шт.

18

166052A1

BOLT

2шт.

19

KRJ11580

HOSE CLIP

2шт.

20

KRJ11590

SUPPORT

1шт.

21

166052A1

BOLT

2шт.

22

150496A1

MOUNTING CLIP

3шт.

23

KHJ14000

VALVE SECTION

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

2шт.

25

KHJ15190

SUPPORT

1шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

27

150409A1

WASHER

2шт.

28

162554A1

FITTING

Inc. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

161841A1

HYD CONNECTOR

1шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Inc. 32

2шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

159002A1

PLUG

Inc. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

37

KHJ2088

HOSE

1шт.

38

KHJ15170

HYDRAULIC HOSE

1шт.

39

KHJ18020

HOSE

1шт.

40

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Inc. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

150933A1

ELBOW

Inc. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

150496A1

MOUNTING CLIP

3шт.
