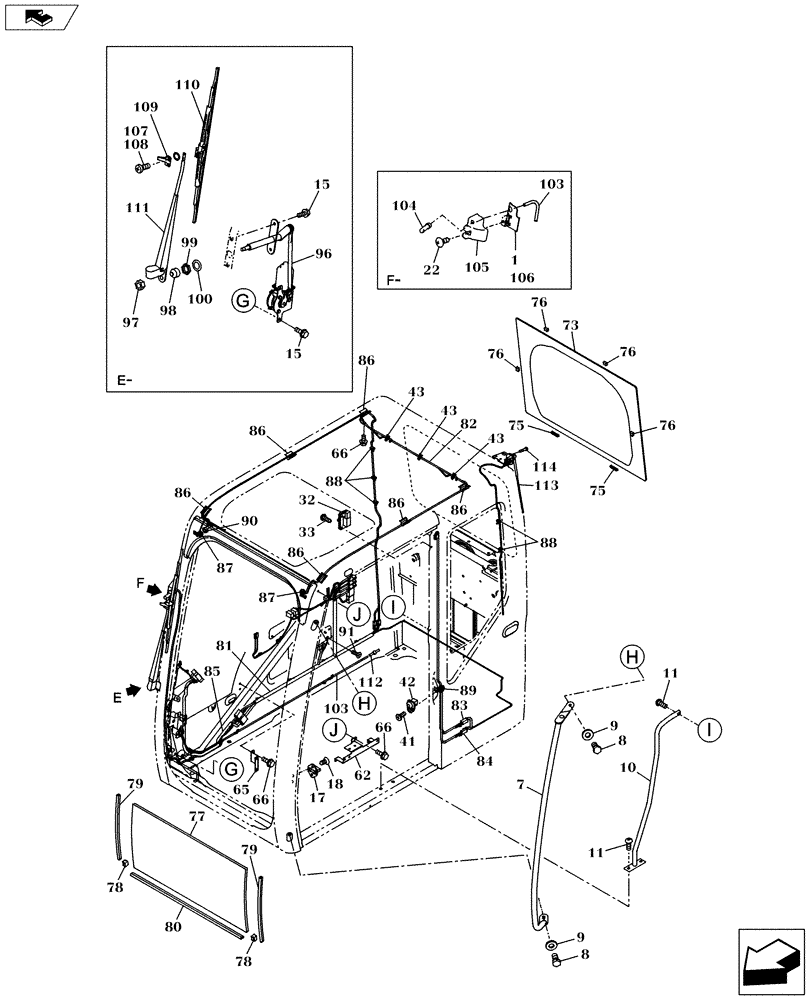

Запчасти Case CX160C (90.150.AB[02]) - CAB ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN28961

CAB

Incl 6 - 262

1шт.

7

KHN14110

HANDRAIL

1шт.

8

KHN14120

BOLT,Spcl

2шт.

9

KHN14130

WASHER

2шт.

10

KHN14150

HANDRAIL

1шт.

11

KHN14160

BOLT,Spcl

3шт.

15

KHN18880

BOLT

12шт.

17

KHN14200

STOP

1шт.

18

KHN2702

SCREW,Spcl

2шт.

22

KHN2682

SCREW,Spcl

5шт.

32

KHN2714

COURTESY LIGHT

1шт.

33

KHN2687

SCREW,Spcl

2шт.

41

KHN2713

SCREW,Spcl

1шт.

42

KHR2950

LIMIT SWITCH

1шт.

43

KHN25940

COLLAR

4шт.

62

KHN25320

BRACKET, SUPPORTING

1шт.

65

KHN25360

BRACKET, SUPPORTING

1шт.

66

KHN18870

BOLT

20шт.

73

KHN25250

CAB GLASS

1шт.

75

KHN14980

SPACER

6шт.

76

KHN14990

SPACER

11шт.

77

KHN25610

CAB GLASS

1шт.

78

KHN25850

STOP

2шт.

79

KHN25820

SEAL, GLASS

2шт.

80

KHN15030

SEAL, GLASS

1шт.

81

KHN25430

WIRE HARNESS

1шт.

82

KHN25440

WIRE HARNESS

1шт.

83

KHN25450

WIRE HARNESS

1шт.

84

KHN25460

WIRE HARNESS

1шт.

85

KHN25470

WIRE HARNESS

1шт.

86

KHN2712

FASTENER

6шт.

87

KHN25810

GROMMET

2шт.

88

KHN17180

MOUNTING CLIP

5шт.

89

KHN2709

GROMMET

1шт.

90

KHN25970

NUT

1шт.

91

KHN2719

SCREW,Spcl

1шт.

96

KHN25780

WIPER MOTOR

1шт.

97

KHN2740

SPECIAL NUT

1шт.

98

KHN2739

CAP

1шт.

99

KHN2738

SPECIAL NUT

1шт.

100

KHN2737

WASHER

1шт.

103

KHN16050

TUBE

1шт.

104

KHN2746

NOZZLE

1шт.

105

KHN25710

HOLDER

1шт.

106

KHN25720

PACKING

1шт.

107

KHN16090

WIPER ARM

Incl 108 - 111

1шт.

108

KHN20170

SCREW,Spcl

1шт.

109

KHN20180

NIPPLE

1шт.

110

KHN16820

WINDSHIELD WIPER

1шт.

111

KHN16830

WIPER ARM

1шт.

112

KHN16100

RUBBER JOINT

1шт.

113

KHN25790

ANTENNA

1шт.

114

KHN16110

SCREW

2шт.

118

KHN16250

SUN VISOR

Incl 119 - 123

1шт.

119

KHN17380

SUN VISOR

1шт.

123

KHN2682

SCREW,Spcl

6шт.

147

KHN16230

COVER

1шт.

148

KHN26750

CABIN DOOR

1шт.

149

KHN15350

WINDOW

1шт.

150

KHN15370

WINDOW FRAME

1шт.

153

KHN15420

LOCKING TAB

2шт.

154

KHN16350

LOCK

2шт.

158

KHN16390

SCREW

4шт.

163

KHN15470

STOP LOCK

1шт.

189

KHN18800

SCREW,Spcl, M6 x 12mm

2шт.

190

KHN13700

HATCH

1шт.

191

KHN15180

HATCH

1шт.

192

KHN15190

CAB GLASS

1шт.

204

KHN15310

SCREW

2шт.

207

KHN2828

CIRCLIP

4шт.

208

KHN25210

WINDOW ASSY

1шт.

209

KHN25220

WINDOW FRAME

1шт.

227

KHN19340

SEAL

1шт.

229

KHN27210

PADDING

1шт.

234

KHN27450

COVER

1шт.

257

KHR27030

DUCT

1шт.

258

KHR27040

DUCT

1шт.

262

KHR10540

SENSOR

1шт.
