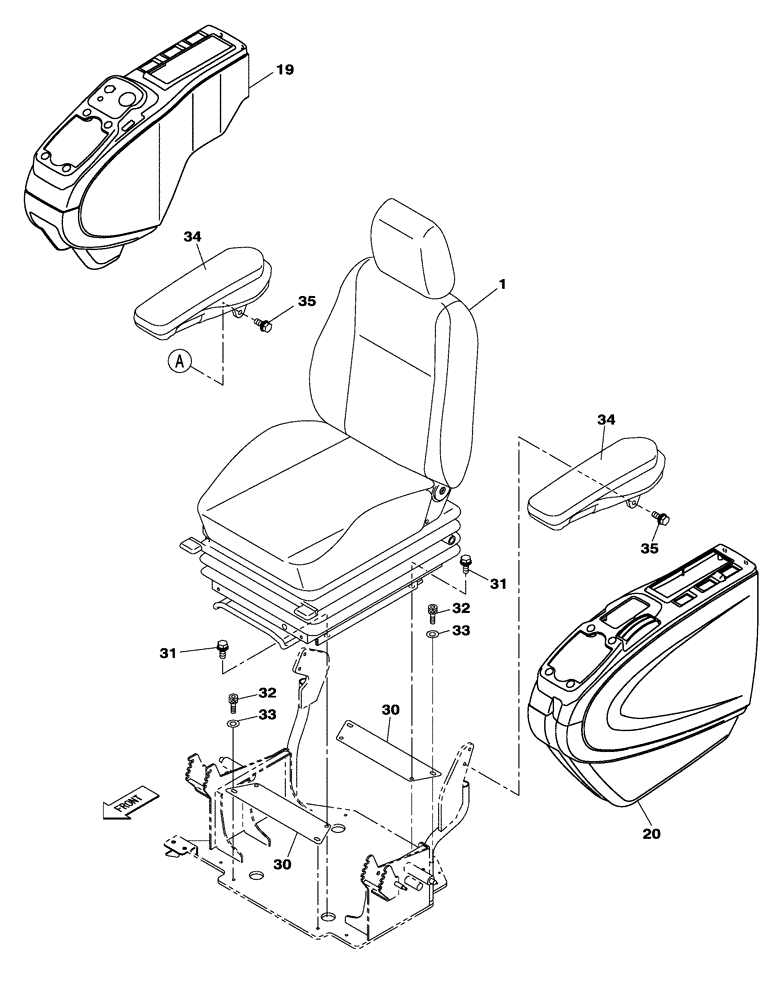

Запчасти Case CX160C (90.120.BB[02]) - SEAT AND CONTROL ARM MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX160C - (90.120.BB[02]) - SEAT AND CONTROL ARM MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/3756026.png)
20
34
34
30
1
33
35
31
30
19
32
35
31
32
33
№
Артикул
Название
Примечание
Количество
1
87706000
DRIVER SEAT
1шт.
30
KHN13531
PLATE
2шт.
31
166350A1
BOLT
4шт.
32
108R008Y020R
HEX SOC SCREW
4шт.
32
KHN26570
BOLT
4шт.
33
892-11008
LOCK WASHER,8mm ID
4шт.
33
KHN26580
WASHER
4шт.
34
KHN27560
ARMREST
2шт.
35
KHN13540
BOLT,Spcl
4шт.
35
KHN13540
BOLT,Spcl
2шт.
19
NS
NOT SERVICED
RH
1шт.
See figure 90.110.AV (02)
1шт.
20
NS
NOT SERVICED
LH
1шт.
See figure 90.110.AV (01)
1шт.
Выбрано товаров: 14
