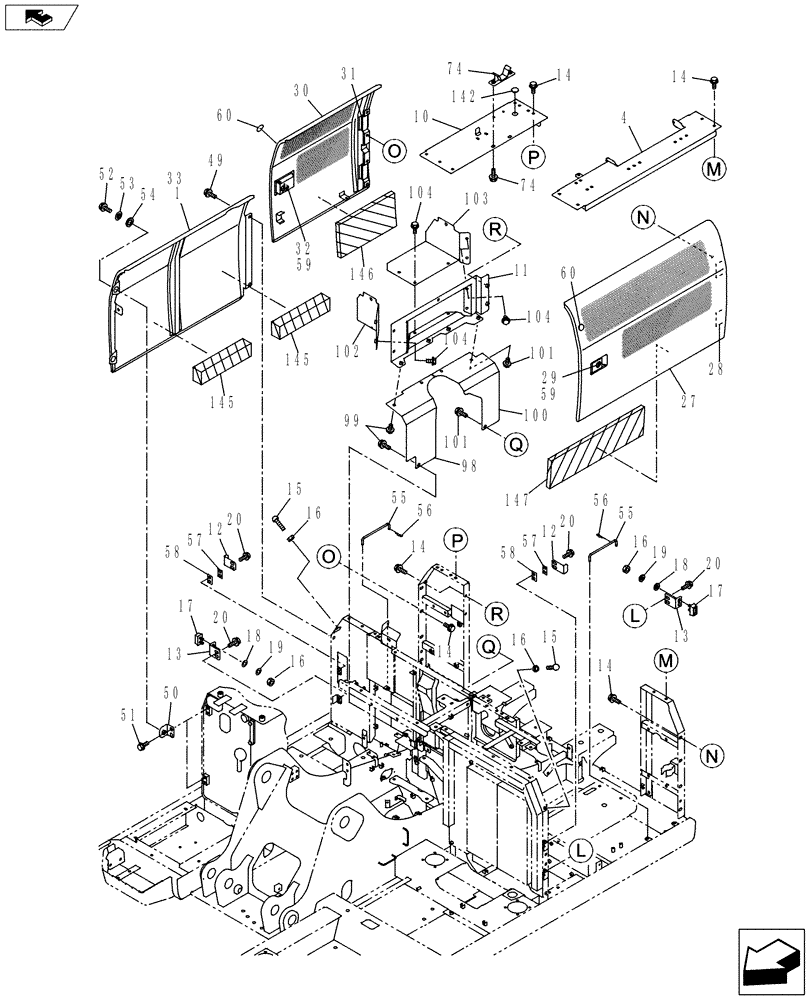

Запчасти Case CX160C (90.100.AD[02]) - HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

Incl in KG0LN034

1шт.

4

KLN12110

SUPPORT ASSY.

1шт.

10

KLN12080G1

FRAME

1шт.

11

KLN12090

COVER

1шт.

12

KHN11940

SUPPORT

2шт.

13

KHN12660

SUPPORT

2шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

23шт.

15

159091A1

STOP

2шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

17

KRN2098

STOP

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

892-11010

LOCK WASHER,M10

4шт.

20

166347A1

BOLT,Sems, M10 x 30mm

8шт.

27

KLN12190Y2

INSPECTION DOOR

1шт.

28

KHN12560

HINGE

2шт.

29

150938A1

LOCK

1шт.

30

KLN12180Y2

INSPECTION DOOR

1шт.

31

KHN12560

HINGE

2шт.

32

150938A1

LOCK

1шт.

33

KLN11560Y2

COVER

1шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

50

KHN12670

SUPPORT

2шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

52

166352A1

BOLT

2шт.

53

162409A1

WASHER

2шт.

54

KHN2061

WASHER

2шт.

55

KRN20910

DOOR STAY

2шт.

56

153181A1

COTTER PIN

2шт.

57

152719A1

SHIM

1шт.

58

158749A1

SHIM

1шт.

59

KHN24530

LOCK CYLINDER

2шт.

60

KRN17430

RUBBER PAD

2шт.

74

KNN12800

BRACKET

1шт.

98

KNN12660

COVER

1шт.

99

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

100

KNN12670

COVER

1шт.

101

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

102

KLN12140

COVER

1шт.

103

KLN12130

COVER

1шт.

104

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

142

KBJ0525

GROMMET

1шт.

145

KLN11220

NOISE PROTECTION

2шт.

146

KLN12310

INSULATION

1шт.

147

KBN11490

SEAL

1шт.
