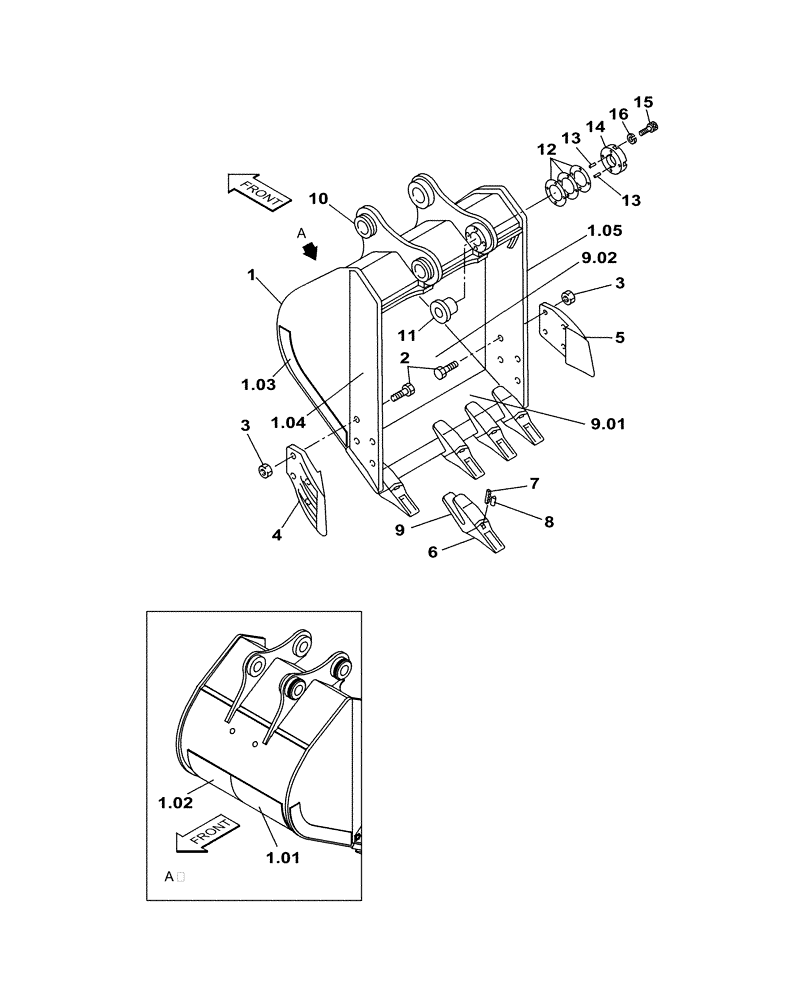

Запчасти Case CX160C (84.100.AB[01]) - VAR - 461042 - BUCKET (0,55M³ X 900MM) (84) - BOOMS, DIPPERS & BUCKETS

1

KLV13520

BUCKET

Bucket, 0.55M3x900mm, ASSY, Incl 2 - 16

1шт.

1.01

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

1.02

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

1.03

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

1.04

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

1.05

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

2

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

3

162R020VN

NUT

8шт.

4

KNV0460

TOOTH

Side

1шт.

5

KNV0461

CUTTER

Side

1шт.

6

KNV0438

BUCKET TOOTH POINT

5шт.

7

KMV0082

PIN

Locking, Standard

5шт.

7

KHV11300

PIN

Locking, Alternative Part

5шт.

Same Usage/Applicability. To be Ordered when P/N KMV0082 is not Available

1шт.

8

KMV0083

LOCK

Standard

5шт.

8

KHV11310

LOCK

Rubber Pin, Alternative Part

5шт.

Same Usage/Applicability. To be Ordered when P/N KMV0083 is not Available

1шт.

9

KNV0462

ADAPTER

5шт.

9.01

KLV14080

Lip Bucket

1шт.

9.02

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

2шт.

11

KRV2416

BUSHING

1шт.

12

KRV1159

SHIM

6шт.

13

837-12032

DOWEL,M12 x 32

2шт.

14

KRV1518

PLATE

1шт.

15

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

4шт.

16

184-016VR

SPRING WASHER

4шт.
