/ / / / / / / / (55.530.AA[01]) - SIDE CAMERA

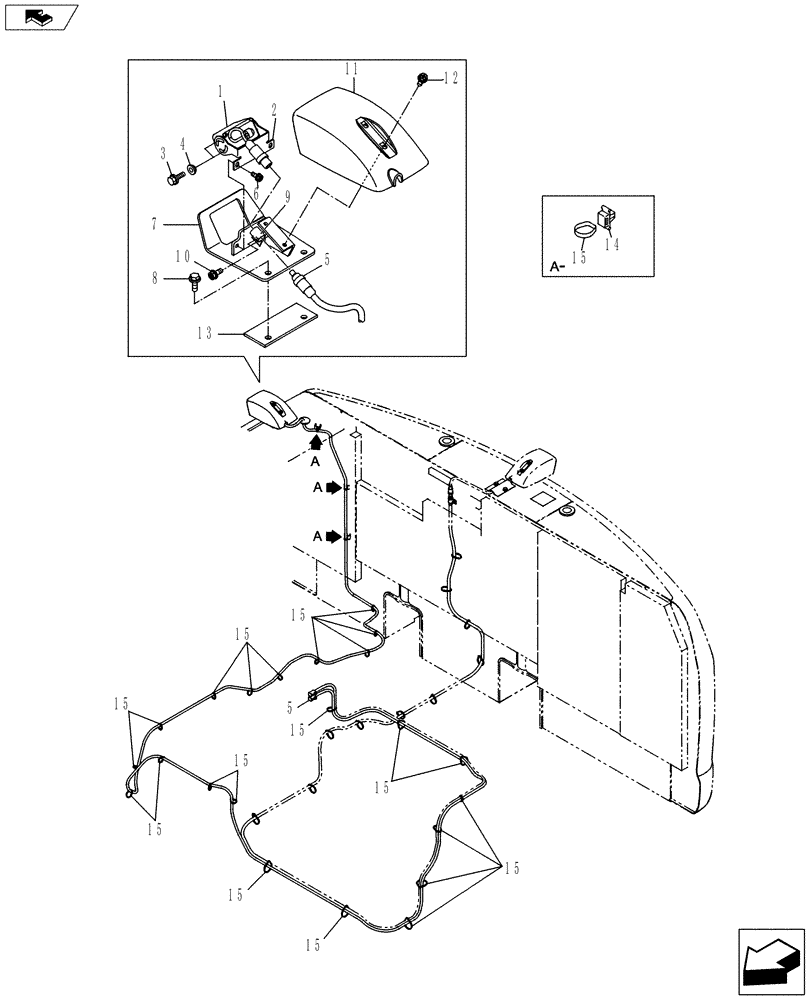

Запчасти Case CX160C (55.530.AA[01]) - SIDE CAMERA (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case CX160C - (55.530.AA[01]) - SIDE CAMERA (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/3754581.png)
2
15
11
1
15
3
15
15
8
14
15
5
15
9
13
12
1
15
15
10
4
15
15
5
6
15
home
1
7
1
KHR23830
VIDEO CAMERA
1шт.
2
KHR28180
BRACKET
1шт.
3
KHR28190
BOLT
4шт.
4
KHR28200
BUSHING
4шт.
5
KHR28650
WIRE HARNESS
1шт.
6
KHN2132
BOLT,Hex Flg Hd, M6 x 16
2шт.
7
KHR28630B1
BRACKET, SUPPORTING
1шт.
8
167182A1
BOLT,Sems, M8 x 25mm
2шт.
9
157806A1
COLLAR
1шт.
10
KHN2132
BOLT,Hex Flg Hd, M6 x 16
1шт.
11
KHR28640
COVER
1шт.
12
KHN2132
BOLT,Hex Flg Hd, M6 x 16
2шт.
13
KHR27280
PLATE
1шт.
14
KHR10220
MOUNTING CLIP
4шт.
15
150496A1
MOUNTING CLIP
17шт.
