(55.512.BP) - CONTROLLER

Запчасти Case CX160C (55.512.BP) - CONTROLLER (55) - ELECTRICAL SYSTEMS

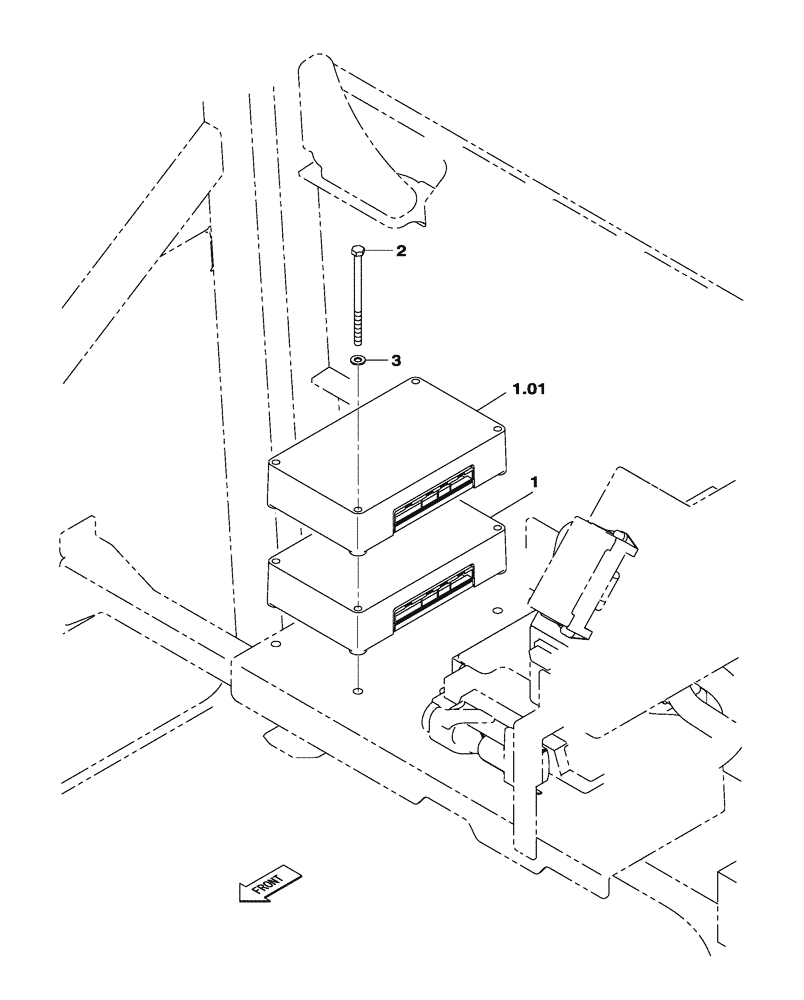

Схема запчастей Case CX160C - (55.512.BP) - CONTROLLER (55) - ELECTRICAL SYSTEMS
2
1
3
1.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR29007

ECU

Machine A (Replace with KHR29007 and KHR29057 at same time)

1шт.

1.01

KHR29057

ECU

Machine B (Replace with KHR29007 and KHR29057 at same time)

1шт.

1-1.01

KHR29064R

REMAN ELECT CONTROL

Programmable to Function as Either Machine A or B. Must be Programmed According

1шт.

1-1.01

KHR29064C

CORE-ELECTRONIC CONT

Return Part Number

1шт.

2

KHR24840

BOLT

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
