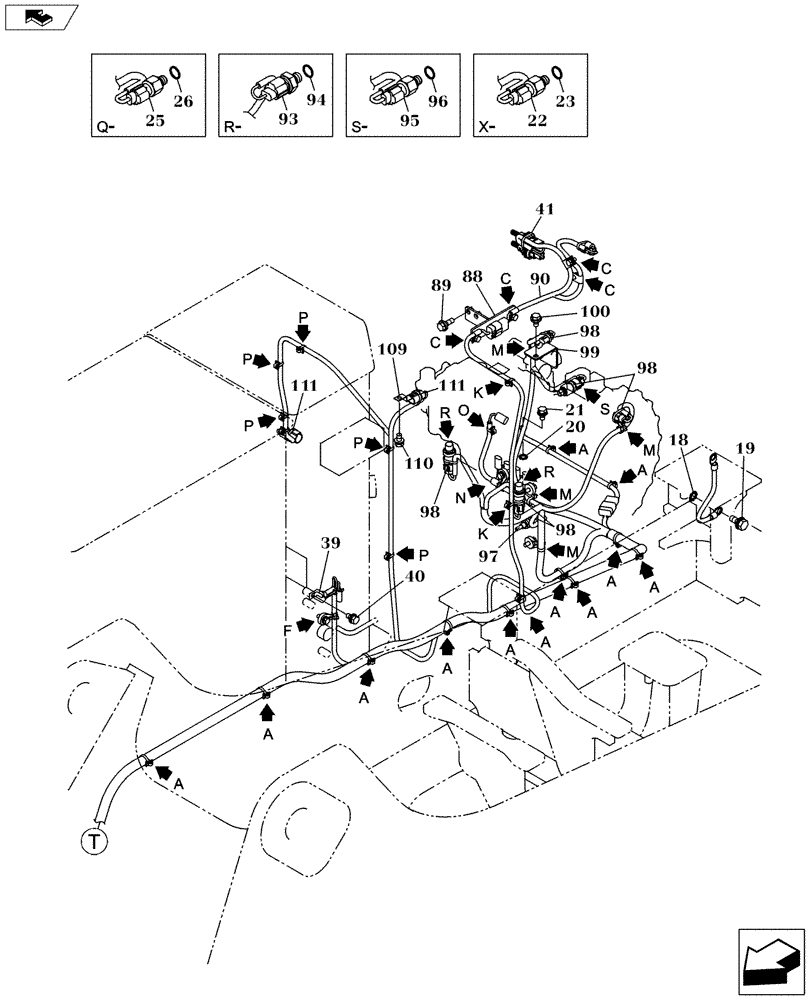

Запчасти Case CX160C (55.510.AB[03]) - ELECTRIC PARTS AND WIRE HARNESS (55) - ELECTRICAL SYSTEMS

18

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

19

KHJ2298

BOLT,Spcl

1шт.

20

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

21

167518A1

BOLT

1шт.

22

KHR26940

SENSOR

5MPA, Pressure

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

KHR26940

SENSOR

5MPA, Pressure

6шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

39

158962A1

CLIP

1шт.

40

167518A1

BOLT

1шт.

41

150496A1

MOUNTING CLIP

1шт.

88

KNR12530

BRACKET

1шт.

89

167182A1

BOLT,Sems, M8 x 25mm

2шт.

90

KHR32130

WIRE HARNESS

1шт.

93

KHR10290

SENSOR

Pressure

2шт.

94

154483A1

O-RING

2шт.

95

KHR26940

SENSOR

5MPA, Pressure

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

98

150496A1

MOUNTING CLIP

5шт.

99

KLR10230

BRACKET

1шт.

100

166345A1

BOLT

1шт.

109

KHR16450

CLIP

1шт.

110

167518A1

BOLT

1шт.

111

150496A1

MOUNTING CLIP

2шт.
