(55.440.10) - ELECTRONIC UNIT, CONTROL

Запчасти Case CX160C (55.440.10) - ELECTRONIC UNIT, CONTROL (55) - ELECTRICAL SYSTEMS

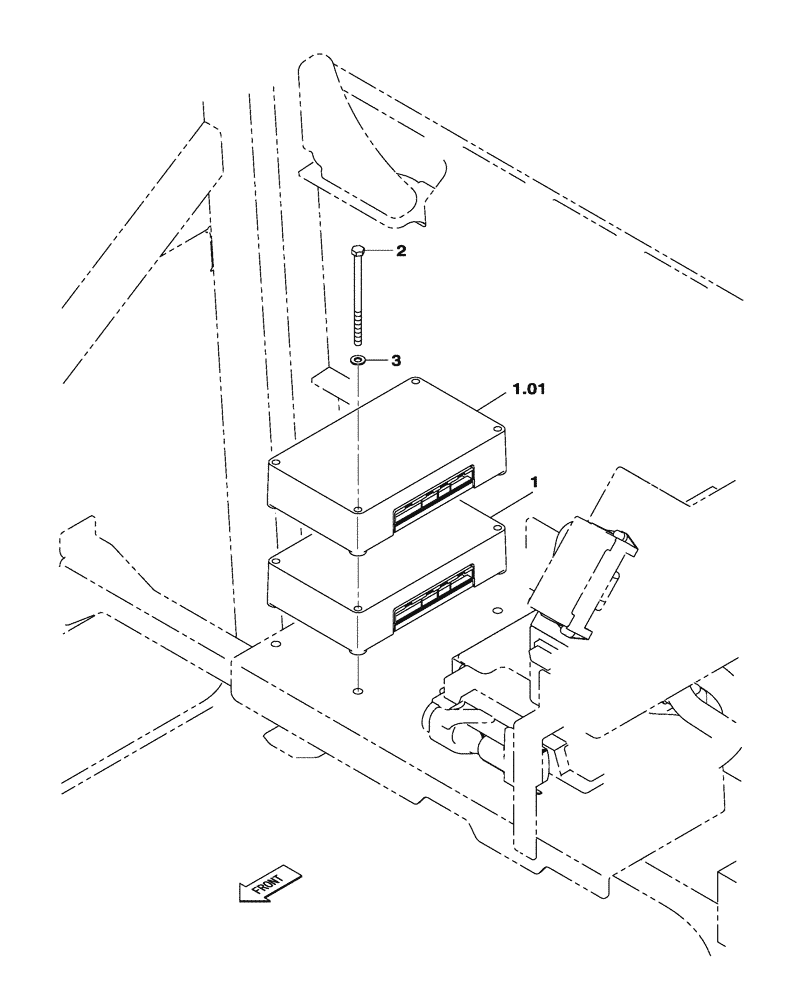

Схема запчастей Case CX160C - (55.440.10) - ELECTRONIC UNIT, CONTROL (55) - ELECTRICAL SYSTEMS
2
3
1
1.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR29004

ECU

Machine A

1шт.

1.01

KHR29054

ECU

Machine B

1шт.

1-1.01

KHR29064R

REMAN ELECT CONTROL

Programmable to Function as Either Machine A or B. Must be Programmed According

1шт.

1-1.01

KHR29064C

CORE-ELECTRONIC CONT

Return Part Number

1шт.

2

KHR24840

BOLT

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 6
