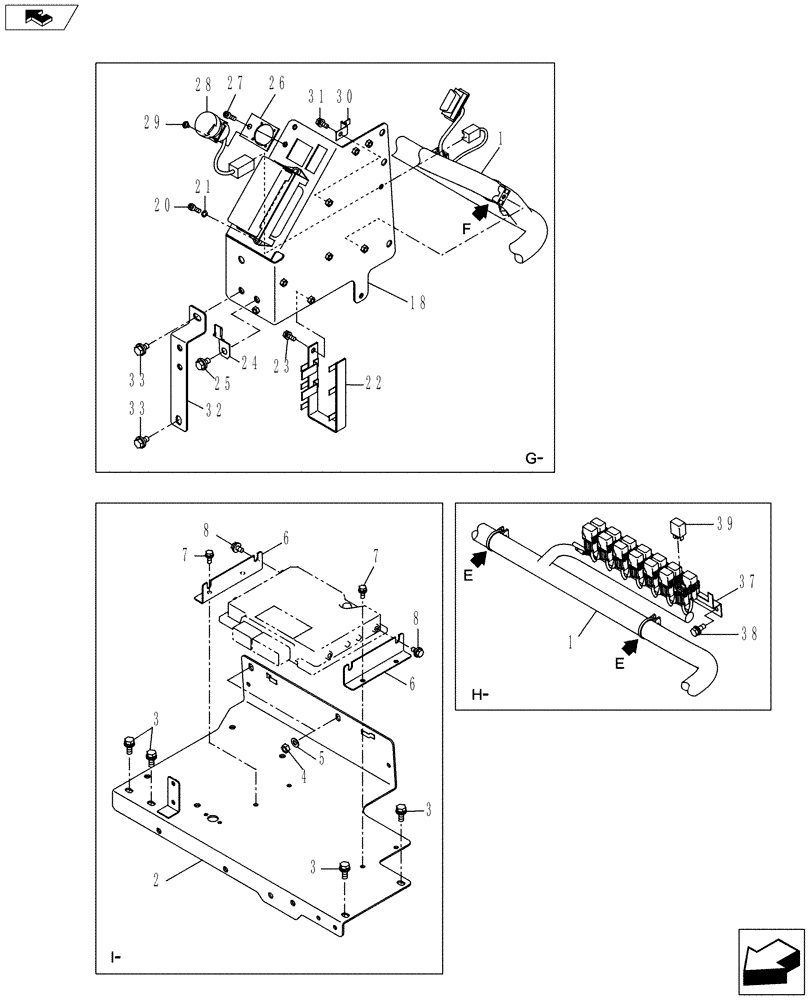

Запчасти Case CX160C (55.100.01[02]) - CAB, HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR30840

WIRE HARNESS

1шт.

2

KHR28440

BRACKET, SUPPORTING

1шт.

3

166345A1

BOLT

4шт.

4

162R008SR

SPRING WASHER

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

KHR28500

BRACKET, SUPPORTING

2шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

4шт.

8

166345A1

BOLT

4шт.

18

KHR28450

BRACKET, SUPPORTING

1шт.

20

108R006Y020R

BOLT

2шт.

21

892-11006

LOCK WASHER,M6

2шт.

22

KHR28480

BRACKET, SUPPORTING

1шт.

23

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

24

KHR3748

COLLAR

1шт.

25

166345A1

BOLT

1шт.

26

KHR28580

BRACKET, SUPPORTING

1шт.

27

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

28

KHR19970

WIRE HARNESS

1шт.

29

162061A1

SCREW,Pan Hd, M3 x 8mm

4шт.

30

165405A1

CLIP

1шт.

31

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

32

KHR28460

BRACKET, SUPPORTING

1шт.

33

166345A1

BOLT

2шт.

34

150860A1

COLLAR

3шт.

35

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

36

150496A1

MOUNTING CLIP

4шт.

37

KHR24760

BRACKET, SUPPORTING

1шт.

38

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

39

KHR3802

RELAY

14шт.
