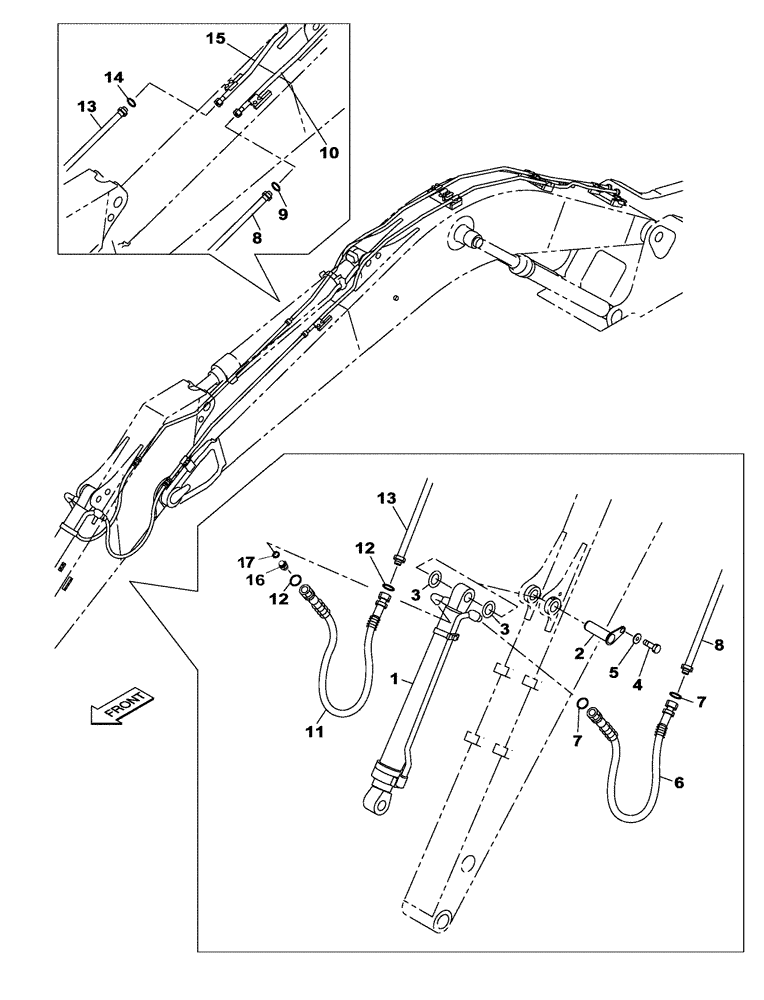

Запчасти Case CX160C (35.900.30) - HYD. LINE - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

KLV11081

BUCKET CYLINDER

1шт.

1

KLV11081R

REMAN-HYD CYLINDER

CX160C CRAWLER EXCAVATOR, TIER 4 (NA), BUCKET CYLINDER (4/12-)

1шт.

1

KLV11081C

CORE-HYD CYLINDER

Return Number

1шт.

2

KLV11280

PIN

1шт.

3

150142A1

SHIM KIT

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KLV11470

HOSE ASSY.,19.00 mm ID x 1200.00 mm

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

8

KLV12530

HYD TUBE,20.8 mm ID x 27.2 mm OD

L

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KLV12510

HYD TUBE,20.8 mm ID x 27.2 mm OD

L

1шт.

11

KLV11470

HOSE ASSY.,19.00 mm ID x 1200.00 mm

1шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

13

KLV12540

HYD TUBE,20.8 mm ID x 27.2 mm OD

R

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KLV12520

HYD TUBE,20.8 mm ID x 27.2 mm OD

R

1шт.

16

KHJ1348

ADAPTER

1шт.

17

154503A1

O-RING

1шт.
