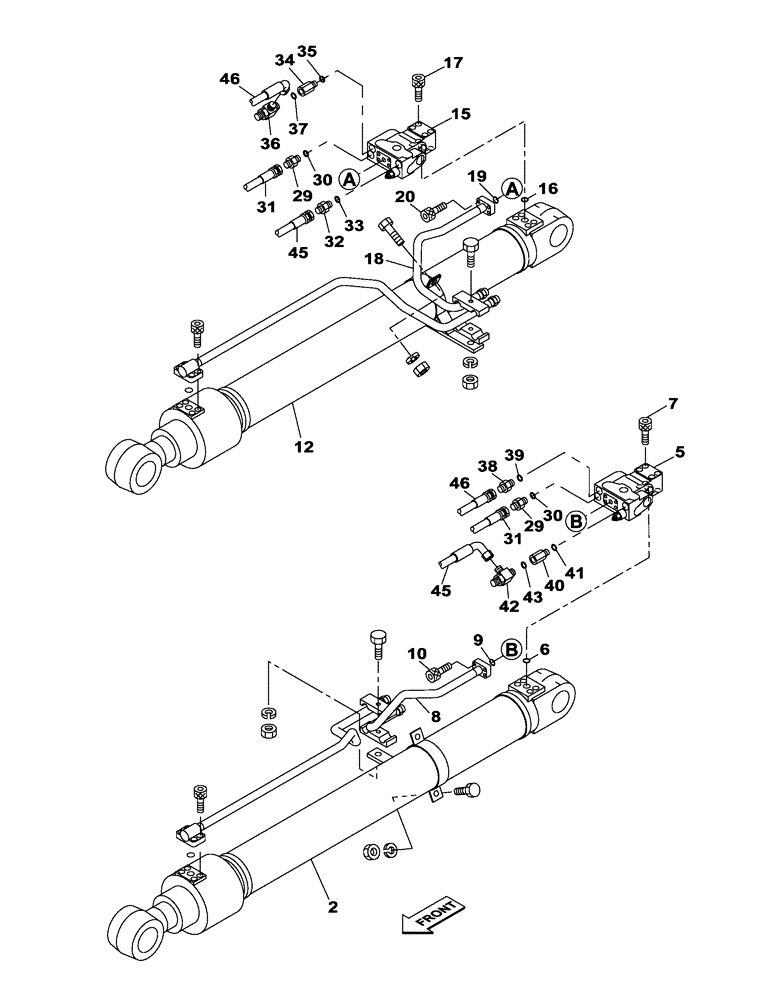

Запчасти Case CX160C (35.900.22[02]) - HYD. LINE - BOOM CYLINDER - OPTIONAL (35) - HYDRAULIC SYSTEMS

2

KLV11020

HYDRAULIC CYLINDER

1шт.

5

KNV12850

VALVE SECTION

1шт.

6

155210A1

O-RING

1шт.

7

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

8

KLV11910

HYD TUBE

LH

1шт.

9

161096A1

O-RING

1шт.

10

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

12

KLV11000

HYDRAULIC CYLINDER

1шт.

15

KNV12850

VALVE SECTION

1шт.

16

155210A1

O-RING

1шт.

17

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

18

KLV11920

HYD TUBE

RH

1шт.

19

161096A1

O-RING

1шт.

20

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 30

2шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

31

KLV13680

HOSE ASSY.

1450 mm

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

34

162525A1

STUD

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

36

159497A1

TEE

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

40

162525A1

STUD

Incl. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

42

159497A1

TEE

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

45

KHJ17070

HYDRAULIC HOSE

1400 mm

1шт.

46

KHJ17070

HYDRAULIC HOSE

1400 mm

1шт.
